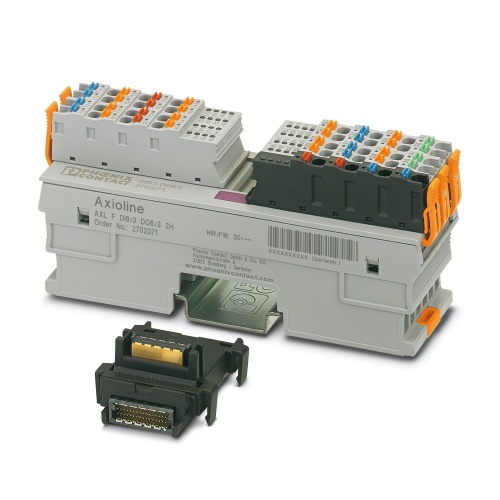

Phoenix Contact 2702071 Digital module AXL F DI8/3 DO8/3 2H
Normally In Stock
Code: 71172
AXL F DI8/3 DO8/3 2H Phoenix 2702071 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$395.16
Sale Price
$329.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702071 The Axioline F is a digital I/O module with 8 digital inputs that operate at 24 V DC, utilizing a 3-conductor connection technology. It also features 8 digital outputs with the same specifications, supported by a 3-conductor connection method and capable of transmitting data at speeds of up to 100 Mbps over its local bus. The module is designed with an IP20 degree of protection, including the base bus module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
8
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
IO Component
Features
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
24 V DC, 2.4 mA

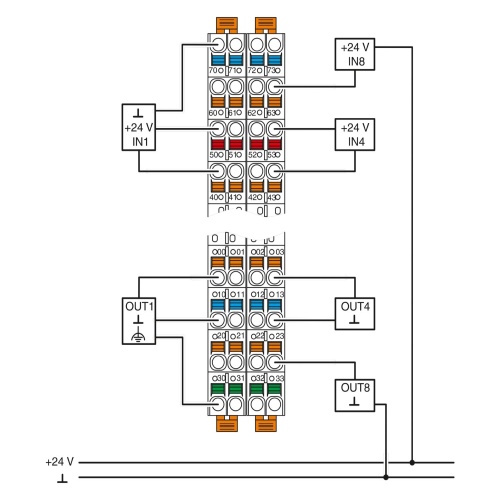

Connection of sensors in 2- and 3-conductor technology
8 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
8 digital outputs
24 V DC, 500 mA
Connection of actuators in 2- and 3-conductor technology
Minimum update time of < 100 μs
Device rating plate stored
Downloads
Phoenix 2702071 CAD data International.dxfPhoenix 2702071 CAD data International.pdfPhoenix 2702071 CAD data International.stpPhoenix 2702071 Configuration software International.zipPhoenix 2702071 Data Sheet English.pdfPhoenix 2702071 Manual English.pdfPhoenix 2702071 Manufacturers declaration English.pdfPhoenix 2702071 Manufacturers declaration International-2.pdfPhoenix 2702071 Manufacturers declaration International.pdfPhoenix 2702071 Package Slip International.pdfPhoenix 2702071 Product Information English.pdfPhoenix 2702071 Tender Text English.zipPhoenix 2702071 Various English.pdf
