Phoenix Contact 2702464 Temperature module AXL F UTH8 XC 1F
Normally In Stock
Code: 71169
AXL F UTH8 XC 1F Phoenix 2702464 I/O component Axioline Analog Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$942.11
Sale Price
$785.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

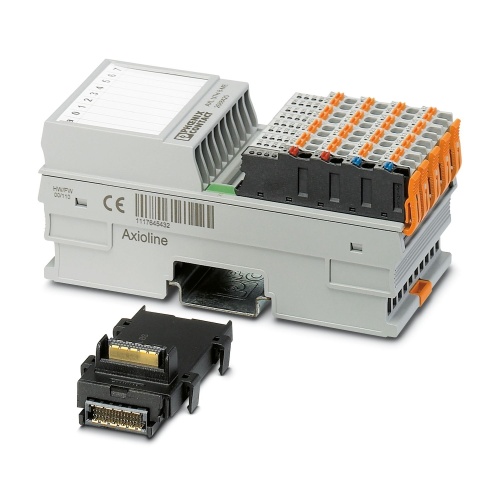

Phoenix Contact 2702464 The Axioline F temperature recording module features analog inputs for thermocouples or linear voltage, with a total of 9 input channels available, including one that can handle signals between -5V and +5V. It uses a 2-conductor shielded twisted pair connection technology, transmitting data at speeds of up to 100 Mbps on its local bus, while also being designed for extreme conditions, offering protection to IP20 standards, complete with the included bus base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
PLC & IO Number of Analog Inputs
9
Component
IO Component
Features

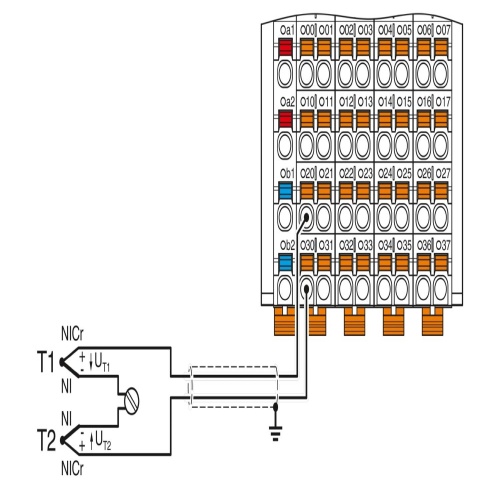

Internal detection and compensation of cold junction temperature (can be parameterized)
1 analog input channel for the connection of voltages from -5 V to +5 V

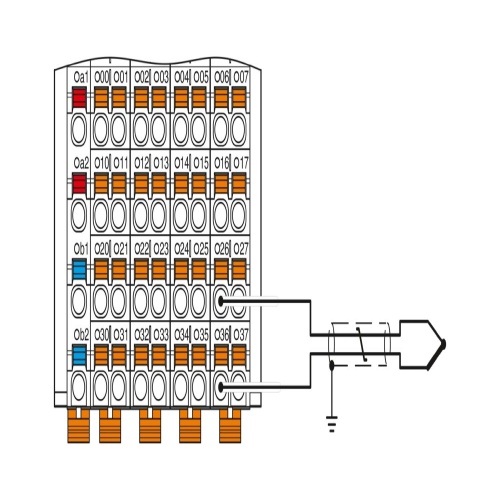

Connection of sensors in 2-conductor technology

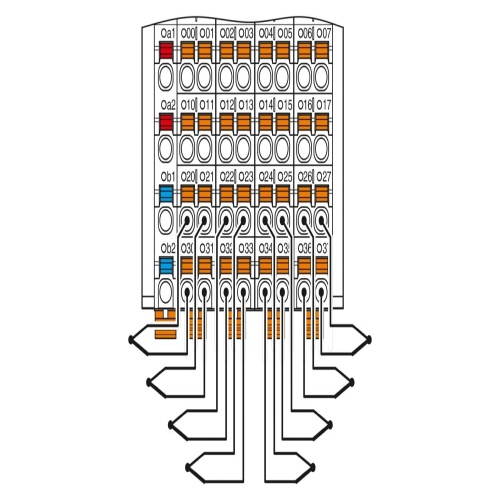

8 analog input channels for the connection of thermocouples or linear voltages from -100 mV to +100 mV
External connection of Pt 100 cold junction sensors possible
Easy to use due to internal linearization of the sensor characteristic curves
Low tolerances (typically ±0.01% for sensor type K)
High temperature stability (typically 5 ppm/K)
High resistance to electromagnetic interference (Class A)
"Channel Scout" function
Device rating plate stored
Installation monitoring with indication via diagnostic LED for each channel
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
Downloads
Phoenix 2702464 CAD data International.dxfPhoenix 2702464 CAD data International.pdfPhoenix 2702464 CAD data International.stpPhoenix 2702464 Configuration software International.zipPhoenix 2702464 Data Sheet English.pdfPhoenix 2702464 Device Description International.zipPhoenix 2702464 Manual English.pdfPhoenix 2702464 Manufacturers declaration English.pdfPhoenix 2702464 Manufacturers declaration International-2.pdfPhoenix 2702464 Manufacturers declaration International.pdfPhoenix 2702464 Package Slip International.pdfPhoenix 2702464 Tender Text English.zipPhoenix 2702464 Various English.pdf
