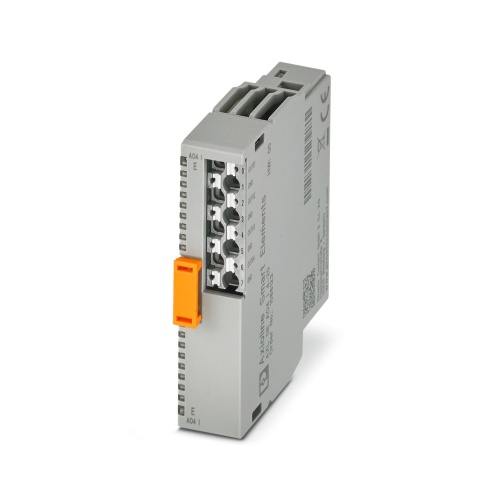

Phoenix Contact 1088123 Analog module AXL SE AO4 I 4-20
Normally In Stock
Code: 71165
AXL SE AO4 I 4-20 Phoenix 1088123 I/O component Axioline Analog Output I/O See system in which you use the Smart Element Push-in connection,Card edge connector,Push-in technology PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$204.40
Sale Price
$170.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088123 The Axioline Smart Elements feature an analog output module with four channels, each capable of producing a current range from 4 to 20 milliamperes, utilizing a 2-conductor connection and boasting an IP20 degree of protection.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
Card Edge Connector
PLC & IO Connection Method
Push-In Technology
PLC & IO Number of Analog Outputs
4
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
PLC & IO Network Interface
Smart Element Interface
Component
I/O Component
Features
Data format: standardized representation

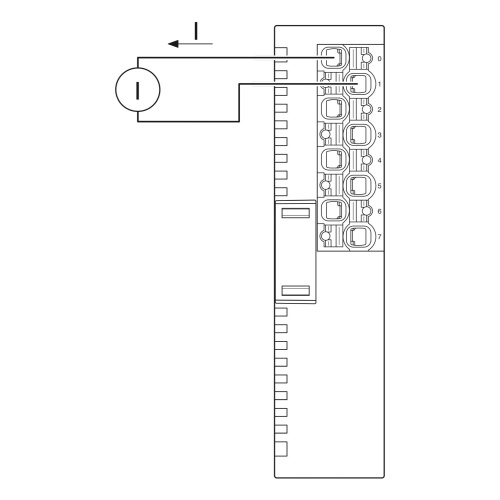

Connection of actuators in 2-conductor technology
Current range: 4 mA ... 20 mA
4 analog output channels
Resolution: 12 bits
Wire-break detection
Substitute value behavior can be parameterized for each output
Device rating plate stored
Downloads
Phoenix 1088123 Application Note English.pdfPhoenix 1088123 Application Note International.pdfPhoenix 1088123 CAD data International.dxfPhoenix 1088123 CAD data International.pdfPhoenix 1088123 CAD data International.stpPhoenix 1088123 Configuration software International.zipPhoenix 1088123 Data Sheet English.pdfPhoenix 1088123 Device Description English.zbcPhoenix 1088123 Manual English.pdfPhoenix 1088123 Manufacturers declaration English.pdfPhoenix 1088123 Manufacturers declaration International.pdfPhoenix 1088123 Tender Text English.zip
