Phoenix Contact 2702783 Digital module AXL F DI8/2 24DC 1F
Normally In Stock
Code: 71164
AXL F DI8/2 24DC 1F Phoenix 2702783 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$763.48
Sale Price
$636.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702783 The Axioline F is a digital input module featuring eight digital inputs, powered by 24V DC, and connected using a 2-conductor standard IEC 61850-3 protocol. It transmits data at a local bus speed of 100 Mbps and is protected to IP20, with the base module including Axioline F connectors as part of its components.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
8
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter time of < 1 ms

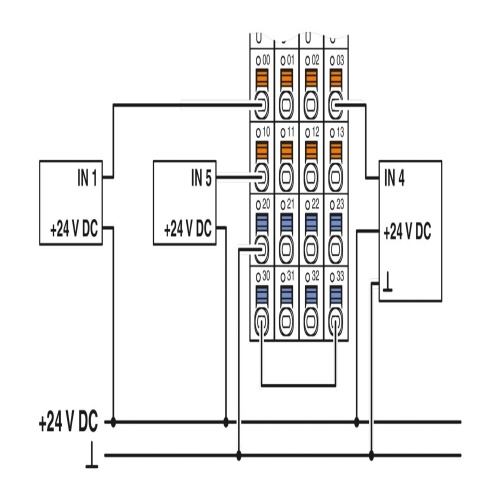

Connection of sensors in 2-conductor technology
24 V DC, 2.5 mA
8 digital inputs according to EN 61131-2 type 1
Inputs are reverse polarity protected
Safe isolation in accordance with EN 61010-2-201/IEC 61010-2-201
Device rating plate stored
Diagnostic and status indicators
Meets the requirements of IEC 61850-3 and IEEE 1613
Downloads
Phoenix 2702783 CAD data International.dxfPhoenix 2702783 CAD data International.pdfPhoenix 2702783 CAD data International.stpPhoenix 2702783 Configuration software International.zipPhoenix 2702783 Data Sheet English.pdfPhoenix 2702783 Manual English.pdfPhoenix 2702783 Manufacturer's declaration English.pdfPhoenix 2702783 Manufacturer's declaration International-2.pdfPhoenix 2702783 Manufacturer's declaration International.pdfPhoenix 2702783 Manufacturers declaration English.pdfPhoenix 2702783 Manufacturers declaration International-2.pdfPhoenix 2702783 Manufacturers declaration International.pdfPhoenix 2702783 Package Slip International.pdfPhoenix 2702783 Product Information English.pdfPhoenix 2702783 Tender Text English.zipPhoenix 2702783 Various English.pdf
