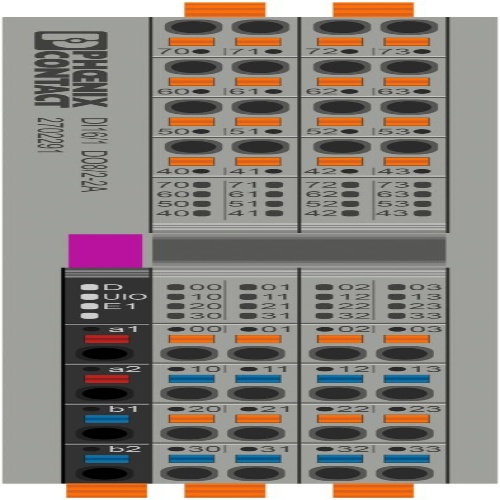

Phoenix Contact 2702291 Digital module AXL F DI16/1 DO8/2-2A 2H
Normally In Stock
Code: 71162
AXL F DI16/1 DO8/2-2A 2H Phoenix 2702291 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus Axioline F connectors (digital inputs) 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$543.32
Sale Price
$452.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702291 The Axioline F is a digital I/O module with 16 digital inputs and 8 digital outputs that operate at 24 V DC. It features 1-conductor connections for the inputs and 2-conductor connections for the outputs. The module has a transmission speed of 100 Mbps on its local bus, provides protection to IP20 standards, and includes a base module and Axioline F connectors as part of its configuration.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
24 V DC, 2.4 mA

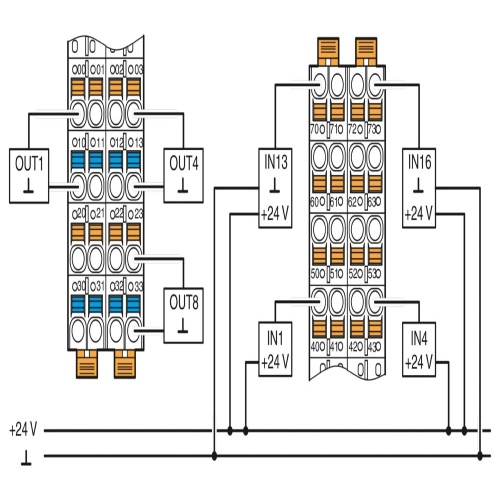

Connection of sensors in 1-conductor technology
16 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
8 digital outputs
24 V DC, 2 A

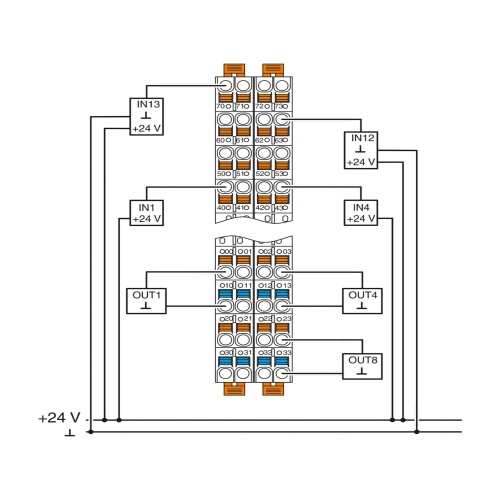

Connection of actuators in 2-conductor technology
Minimum update time of < 100 μs
Device rating plate stored
Downloads
Phoenix 2702291 CAD data International.dxfPhoenix 2702291 CAD data International.pdfPhoenix 2702291 CAD data International.stpPhoenix 2702291 Configuration software International.zipPhoenix 2702291 Data Sheet English.pdfPhoenix 2702291 Manual English.pdfPhoenix 2702291 Manufacturers declaration English.pdfPhoenix 2702291 Manufacturers declaration International-2.pdfPhoenix 2702291 Manufacturers declaration International.pdfPhoenix 2702291 Package Slip International.pdfPhoenix 2702291 Tender Text English.zipPhoenix 2702291 Various English.pdf
