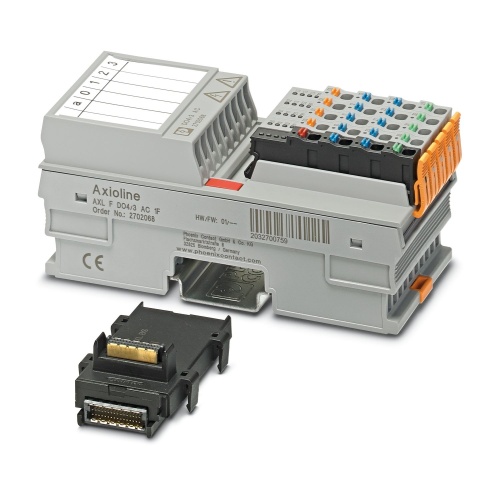

Phoenix Contact 2702068 Digital module AXL F DO4/3 AC 1F
Normally In Stock
Code: 71160
AXL F DO4/3 AC 1F Phoenix 2702068 I/O component Axioline Digital Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$332.58
Sale Price
$277.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

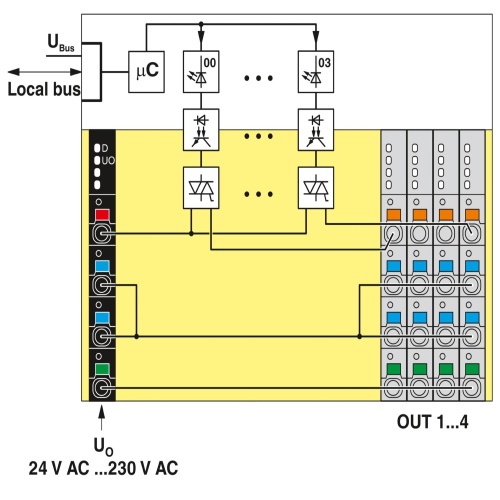

Phoenix Contact 2702068 The Axioline F digital output module features four triac outputs with a zero voltage switch, operating at 230V AC and delivering up to 2A of current. It utilizes a 3-conductor connection technology and transmits data at speeds of up to 100 Mbps on the local bus. The module is protected by an IP20 rating and includes a bus base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Connection of actuators in 2- and 3-conductor technology
Device rating plate stored
4 digital outputs
Downloads
Phoenix 2702068 CAD data International.dxfPhoenix 2702068 CAD data International.pdfPhoenix 2702068 CAD data International.stpPhoenix 2702068 Configuration software International.zipPhoenix 2702068 Data Sheet English.pdfPhoenix 2702068 Manual English.pdfPhoenix 2702068 Manufacturers declaration English.pdfPhoenix 2702068 Manufacturers declaration International-2.pdfPhoenix 2702068 Manufacturers declaration International.pdfPhoenix 2702068 Package Slip International.pdfPhoenix 2702068 Tender Text English.zipPhoenix 2702068 Various English.pdf
