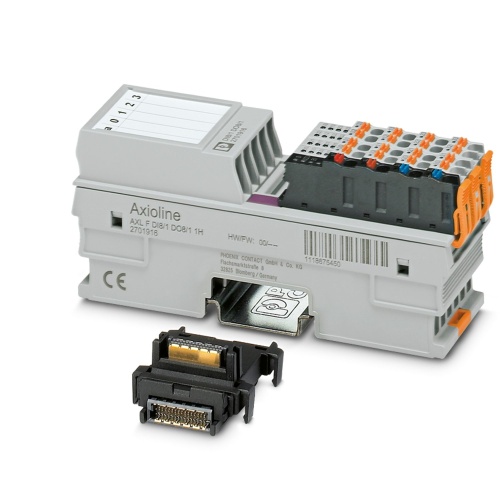

Phoenix Contact 2702017 Digital module AXL F DI8/1 DO8/1 XC 1H
Normally In Stock
Code: 71159
AXL F DI8/1 DO8/1 XC 1H Phoenix 2702017 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$383.86
Sale Price
$319.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702017 The Axioline F digital I/O module features eight digital inputs and eight digital outputs, both powered by 24V DC and capable of handling up to 500mA current. It utilizes a single-conductor connection technology for both inputs and outputs. The device is designed for extreme conditions and can operate at a local bus transmission speed of 100Mbps, while maintaining an IP20 degree of protection rating that includes the base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
8
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
24 V DC, 2.4 mA

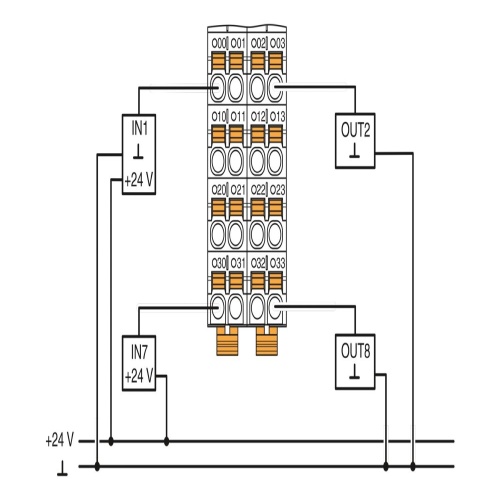

Connection of sensors in 1-conductor technology
8 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
8 digital outputs
24 V DC, 500 mA
Connection of actuators in 1-conductor technology
Minimum update time of < 100 μs
Device rating plate stored
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
Downloads
Phoenix 2702017 CAD data International.dxfPhoenix 2702017 CAD data International.pdfPhoenix 2702017 CAD data International.stpPhoenix 2702017 Configuration software International.zipPhoenix 2702017 Data Sheet English.pdfPhoenix 2702017 Manual English.pdfPhoenix 2702017 Manufacturers declaration English.pdfPhoenix 2702017 Manufacturers declaration International-2.pdfPhoenix 2702017 Manufacturers declaration International.pdfPhoenix 2702017 Package Slip International.pdfPhoenix 2702017 Tender Text English.zipPhoenix 2702017 Various English.pdf
