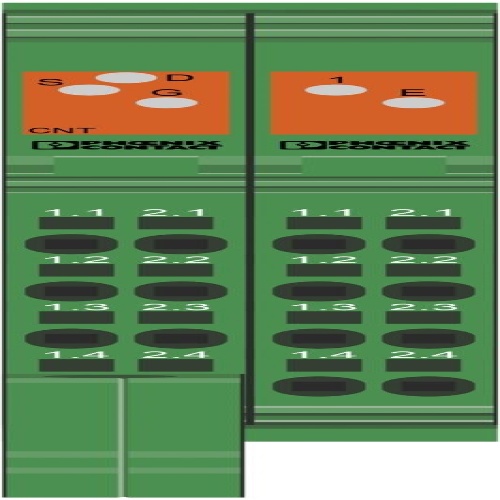

Phoenix Contact 2702134 Function module IB IL CNT-XC-PAC
Normally In Stock
Code: 71158
IB IL CNT-XC-PAC Phoenix 2702134 I/O component Inline Input,Output,Terminal Inline connector 500 kbps Spring-cage connection,Inline data jumper PLC & IO
Condition: New
Usually ships Same Day or Next Day$537.31
Sale Price
$447.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702134 The product features a single inline connector for 24V signals, one control input for 24V signals, one switching output, and operates at 24V DC with a current rating of 0.5A in extreme conditions. It also includes an Extreme Conditions version, which has a local bus transmission speed of 500 kbps, IP20 degree of protection, and comes with inline connectors and marking fields.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Four operating modes: event counting, time or state-controlled frequency measurement, time measurement (period or pulse length), and pulse generator
1 control input
1 freely parameterizable switching output
1 counter input
Processing of 5 V or 24 V signals
Input frequency of up to 100 kHz
16-bit counter value for time measurement
24-bit counter value for event counting and frequency measurement
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Coated PCBs
Downloads
Phoenix 2702134 CAD data International.dxfPhoenix 2702134 CAD data International.pdfPhoenix 2702134 CAD data International.stpPhoenix 2702134 Configuration software International.zipPhoenix 2702134 Data Sheet English.pdfPhoenix 2702134 Function Module International.msiPhoenix 2702134 Manual English-2.pdfPhoenix 2702134 Manual English.pdfPhoenix 2702134 Manufacturers declaration International-2.pdfPhoenix 2702134 Manufacturers declaration International.pdfPhoenix 2702134 Package Slip International.pdfPhoenix 2702134 Tender Text English.zipPhoenix 2702134 Various English.pdf
