Code: 71094

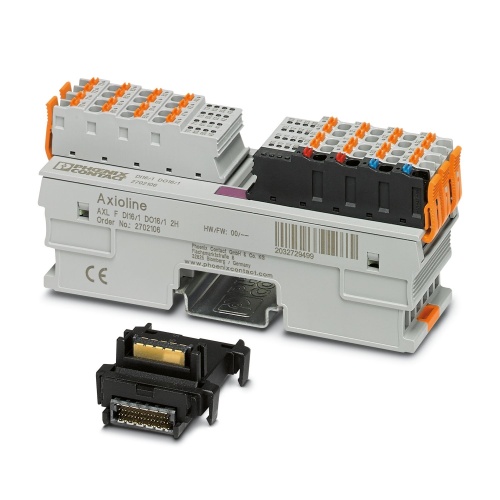

Phoenix Contact 2702106 Digital module AXL F DI16/1 DO16/1 2H
Normally In Stock
AXL F DI16/1 DO16/1 2H Phoenix 2702106 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$482.65
Sale Price
$402.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702106 The Axioline F is a digital I/O module featuring 16 digital inputs and outputs, both with a 24V DC power supply, and uses 1-conductor connections. The local bus transmission speed is 100 Mbps, while the device has a degree of protection of IP20, making it include both the base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
IO Component
Features
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
24 V DC, 2.4 mA

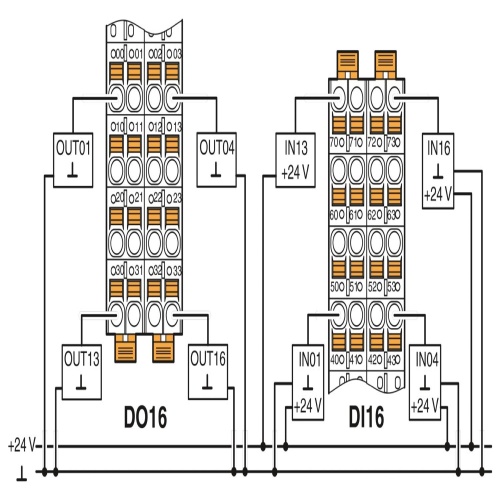

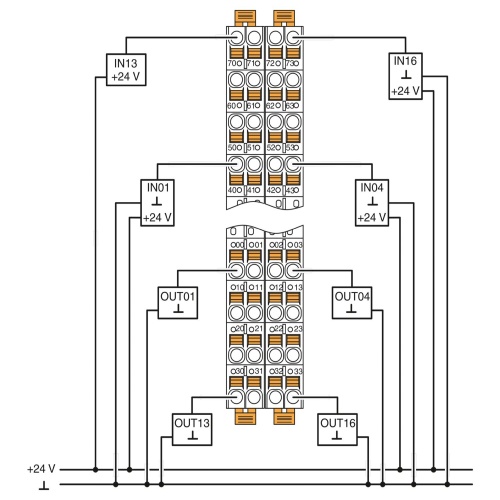

Connection of sensors in 1-conductor technology
16 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
16 digital outputs
24 V DC, 500 mA
Connection of actuators in 1-conductor technology
Minimum update time of < 100 μs
Device rating plate stored
Downloads
Phoenix 2702106 CAD data International.dxfPhoenix 2702106 CAD data International.pdfPhoenix 2702106 CAD data International.stpPhoenix 2702106 Configuration software International.zipPhoenix 2702106 Data Sheet English.pdfPhoenix 2702106 Manual English.pdfPhoenix 2702106 Manufacturers declaration English.pdfPhoenix 2702106 Manufacturers declaration International-2.pdfPhoenix 2702106 Manufacturers declaration International.pdfPhoenix 2702106 Package Slip International.pdfPhoenix 2702106 Tender Text English.zipPhoenix 2702106 Various English.pdf
