Code: 71091
Phoenix Contact 2701235 Temperature module AXL F RTD8 XC 1F
Normally In Stock
AXL F RTD8 XC 1F Phoenix 2701235 I/O component Axioline Analog Input,Bus Axioline F local bus 100 Mbps Bus base module,Push-in connection PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$1095.13
Sale Price
$912.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

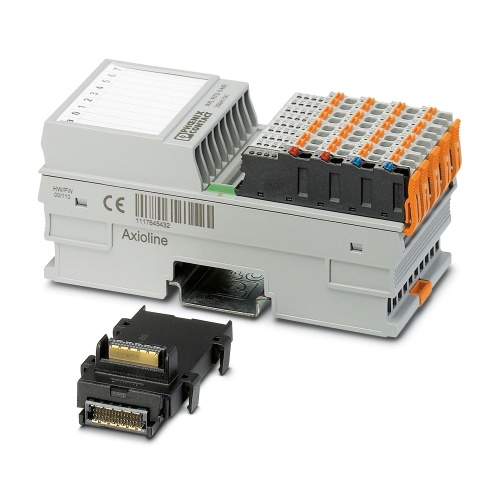

Phoenix Contact 2701235 The Axioline F Temperature Recording Module features analog inputs for 8 resistance temperature detectors, utilizing 2-, 3-, or 4-conductor shielded connections with a local bus transmission speed of 100 Mbps. It also includes an Extreme Conditions version, which boasts IP20 protection, along with the included bus base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Analog Inputs
8
Manufacturer
Phoenix Contact
Component
IO Component
Features
Integrated, digital sensor linearization
500 Ω and 5 kΩ linear inputs

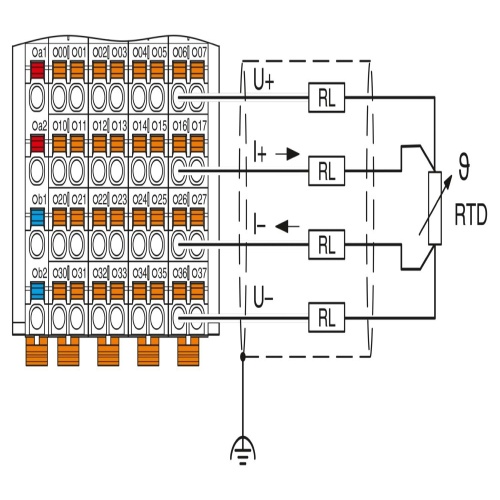

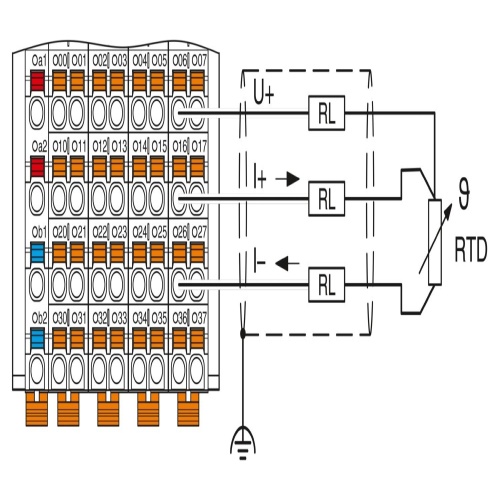

Connection of sensors in 2-, 3-, and 4-conductor technology
8 analog input channels for the connection of resistance temperature detectors (RTD)
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Temperature stability
Very high level of noise immunity
Low noise emission
Installation monitoring by means of “Channel scout” function
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
Device rating plate stored
