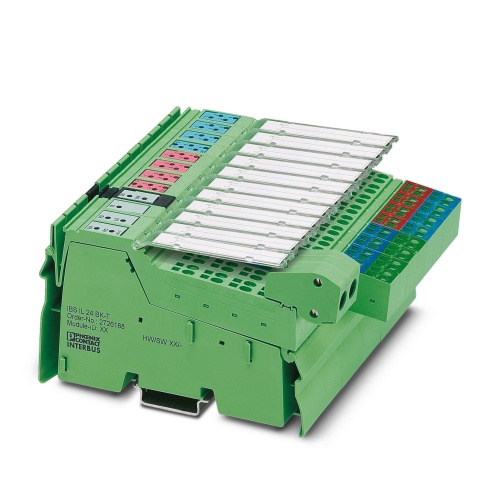

Phoenix Contact 2742586 Bus coupler IBS IL 24 BK DIO 16/16
Normally In Stock
Code: 71081
IBS IL 24 BK DIO 16/16 Phoenix 2742586 I/O component Inline Digital Input,Digital Output,Bus INTERBUS 500 kbps Inline shield connector,Inline data jumper,8-pos. Inline power connector,Spring-cage connection PLC & IO
Condition: New
Usually ships Same Day or Next Day$1161.25
Sale Price
$967.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2742586 The device features a range of connections including inline, bus coupler, INTERBUS, and inline shield connector options with digital inputs and outputs operating at 16 and 24V DC, supported by a 3-conductor connection technology. It also offers digital outputs capable of delivering up to 500 mA and boasts a transmission speed of 500 kbps on the local bus, while providing IP20 protection for its components including inline connectors and marking fields.
Specifications
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Inline Shield Connector
PLC & IO Number of Digital Inputs
16
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Network Interface
INTERBUS
PLC & IO Connection Method
8-Pos. Inline Power Connector
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Connection of actuators in 2- and 3-conductor technology
16 digital outputs
Connection of sensors in 2- and 3-conductor technology
16 digital inputs
Maximum permissible load current per sensor: 250 mA
Nominal current per output: 500 mA
Diagnostic and status indicators
Downloads
Phoenix 2742586 Application Note English.pdfPhoenix 2742586 Application Note International.pdfPhoenix 2742586 CAD data International.dxfPhoenix 2742586 CAD data International.zipPhoenix 2742586 Data Sheet English-2.pdfPhoenix 2742586 Data Sheet English-3.pdfPhoenix 2742586 Data Sheet English.pdfPhoenix 2742586 EPLAN Macro International.z13Phoenix 2742586 EPLAN Macro International.zipPhoenix 2742586 Manual English-2.pdfPhoenix 2742586 Manual English.pdfPhoenix 2742586 Manufacturers declaration International.pdfPhoenix 2742586 Package Slip International.pdfPhoenix 2742586 Tender Text English.zipPhoenix 2742586 Various English.pdf
