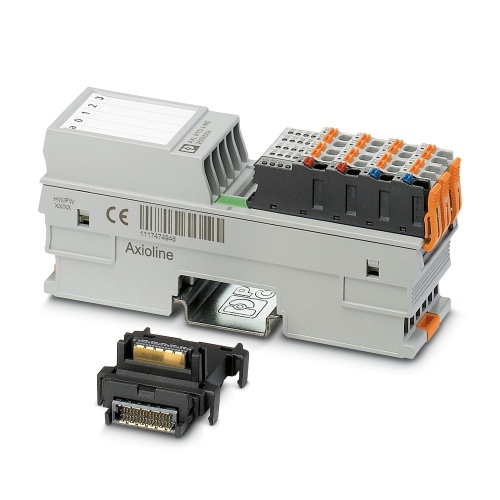

Phoenix Contact 2688556 Temperature module AXL F RTD4 1H
Normally In Stock
Code: 71080
AXL F RTD4 1H Phoenix 2688556 I/O component Axioline Analog Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$694.33
Sale Price
$578.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688556 The Axioline F is a temperature recording module that features four analog inputs for resistance temperature detectors. It uses 2-, 3-, or 4-conductor shielded connection technology and communicates at a local bus transmission speed of 100 Mbps. This module includes the bus base module and comes with Axioline F connectors, providing a degree of protection against dust and dirt with an IP20 rating.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Analog Inputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Integrated, digital sensor linearization
500 Ω and 5 kΩ linear inputs

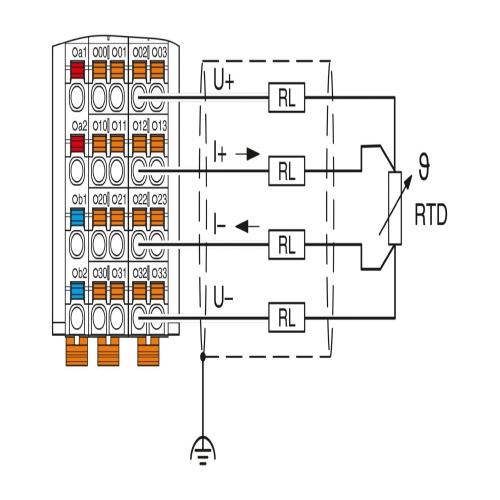

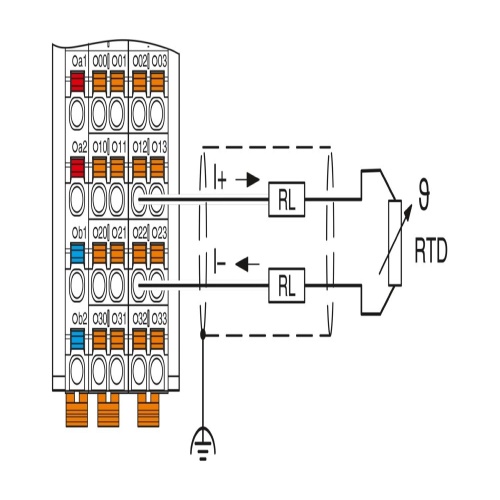

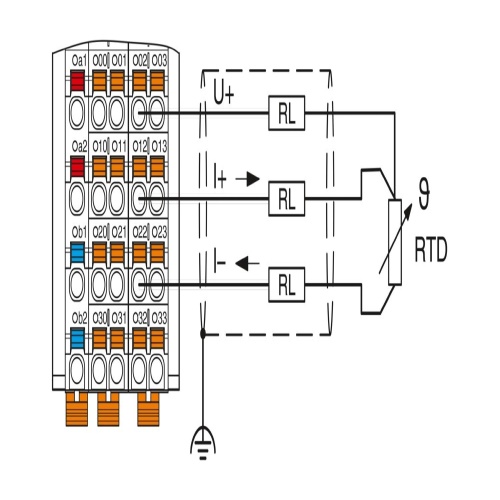

Connection of sensors in 2-, 3-, and 4-conductor technology
4 analog input channels for connecting resistance temperature detectors (RTDs)
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Temperature stability
Very high level of noise immunity
Low noise emission
Installation monitoring by means of “Channel scout” function
Device rating plate stored
Downloads
Phoenix 2688556 CAD data International.dxfPhoenix 2688556 CAD data International.pdfPhoenix 2688556 CAD data International.stpPhoenix 2688556 Configuration software International.zipPhoenix 2688556 Data Sheet English.pdfPhoenix 2688556 Function Module International.msiPhoenix 2688556 Manual English.pdfPhoenix 2688556 Manufacturers declaration English.pdfPhoenix 2688556 Manufacturers declaration International-2.pdfPhoenix 2688556 Manufacturers declaration International.pdfPhoenix 2688556 Package Slip International.pdfPhoenix 2688556 Tender Text English.zipPhoenix 2688556 Various English.pdf
