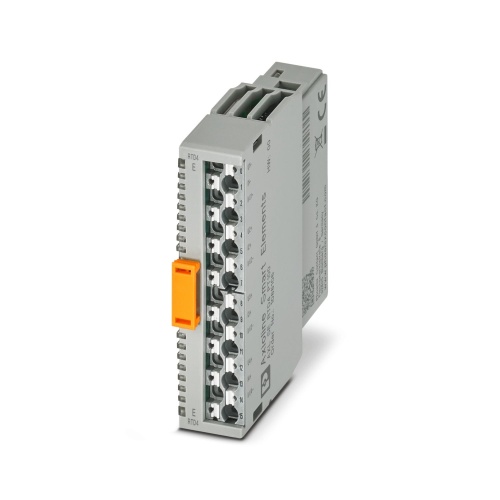

Phoenix Contact 1088106 Temperature module AXL SE RTD4 PT100
Normally In Stock
Code: 71079
AXL SE RTD4 PT100 Phoenix 1088106 I/O component Axioline Input I/O See system in which you use the Smart Element Push-in connection,Card edge connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$262.79
Sale Price
$218.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088106 Axioline Smart Elements is equipped with a temperature recording module that can detect Pt 100 temperature sensors and also features analog RTD inputs for four Pt 100 sensors, utilizing a 3-conductor connection technology and offering a degree of protection of IP20.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
Card Edge Connector
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
PLC & IO Network Interface
Smart Element Interface
Component
I/O Component
Features
Data format: standardized representation

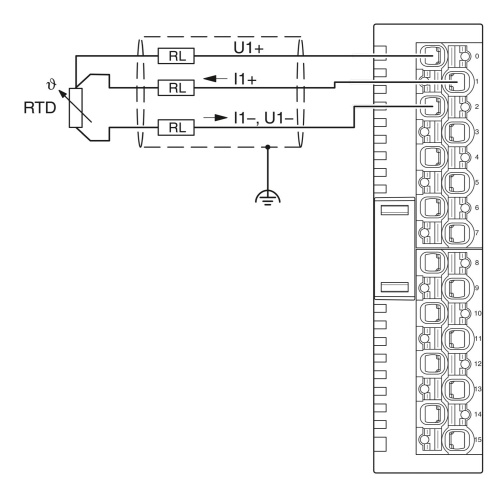

Connection of sensors in 3-conductor technology
2- and 4-conductor sensors can also be connected
4 analog input channels for the connection of resistance temperature detectors (Pt 100)
Resolution: 16 bits
Wire-break detection
Substitute value behavior can be parameterized for each input
Device rating plate stored
Downloads
Phoenix 1088106 Application Note English.pdfPhoenix 1088106 Application Note International.pdfPhoenix 1088106 CAD data International.dxfPhoenix 1088106 CAD data International.pdfPhoenix 1088106 CAD data International.stpPhoenix 1088106 Configuration software International.zipPhoenix 1088106 Data Sheet English.pdfPhoenix 1088106 Device Description English.zbcPhoenix 1088106 Manual English.pdfPhoenix 1088106 Manufacturers declaration English.pdfPhoenix 1088106 Manufacturers declaration International.pdfPhoenix 1088106 Tender Text English.zip
