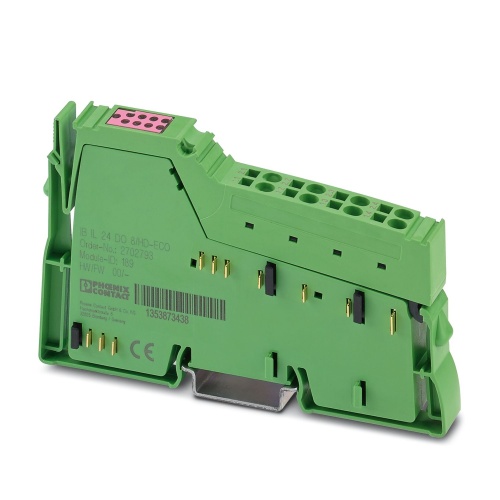

Phoenix Contact 2702793 Digital module IB IL 24 DO 8/HD-ECO
Normally In Stock
Code: 71078
IB IL 24 DO 8/HD-ECO Phoenix 2702793 I/O component Inline Digital Output,Bus,Terminal Inline connector 500 kbps Spring-cage connection,Inline data jumper PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$93.06
Sale Price
$77.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702793 The product features an inline digital output terminal with a transmission speed of 500 kbps on its local bus, and it is protected by IP20, which allows for connection via a single conductor. The output voltage is available in two configurations, DC 8V or DC 24V, making it suitable for various applications.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Total current of the terminal: 4 A
Connection of actuators in 1-conductor technology
Nominal current per output: 500 mA
8 digital outputs
Short-circuit and overload-protected outputs
Downloads
Phoenix 2702793 Application Note English.pdfPhoenix 2702793 CAD data International.dxfPhoenix 2702793 CAD data International.pdfPhoenix 2702793 CAD data International.stpPhoenix 2702793 Configuration software International.zipPhoenix 2702793 Data Sheet English.pdfPhoenix 2702793 Device Description English.zbcPhoenix 2702793 Manual English.pdfPhoenix 2702793 Manufacturers declaration International-2.pdfPhoenix 2702793 Manufacturers declaration International.pdfPhoenix 2702793 Package Slip International.pdfPhoenix 2702793 Product Information English.pdfPhoenix 2702793 Tender Text English.zipPhoenix 2702793 Various English.pdf
