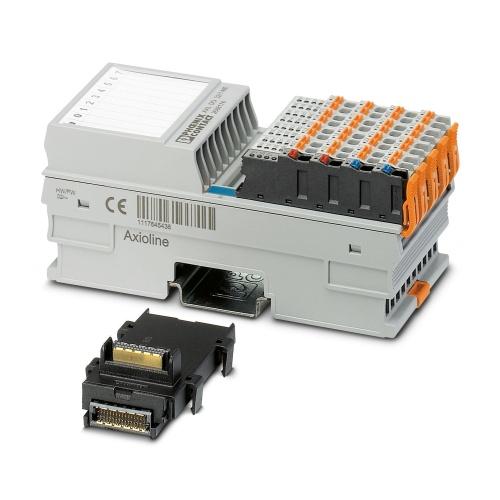

Phoenix Contact 2701226 Digital module AXL F DI32/1 XC 1F
Normally In Stock
Code: 71077
AXL F DI32/1 XC 1F Phoenix 2701226 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$517.93
Sale Price
$431.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701226 The Axioline F is a digital input module with 32 digital inputs that operate at 24V DC. It features a single-conductor connection technology and is designed for extreme conditions. The module has a local bus transmission speed of 100 Mbps, providing an IP20 degree of protection, which includes the bus base module and Axioline F connectors as part of its overall design.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Number of Digital Inputs
32
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Minimum update time of < 100 μs
24 V DC, 2.4 mA

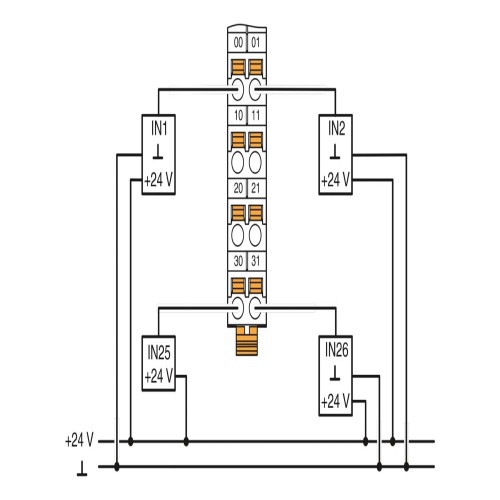

Connection of sensors in 1-conductor technology
32 digital inputs in accordance with EN 61131-2 type 1 and type 3
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
Maximum input frequency: 5 kHz
Device rating plate stored
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
