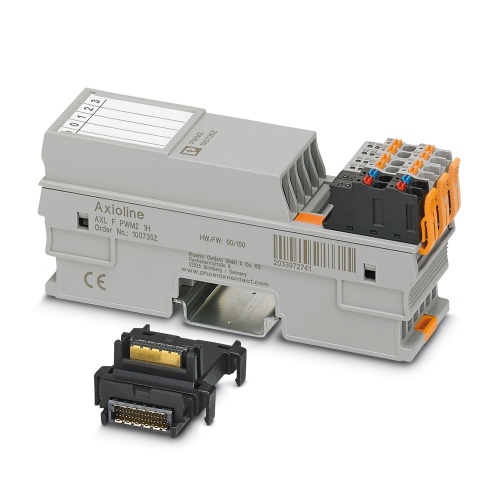

Phoenix Contact 1007352 Function module AXL F PWM2 1H
Normally In Stock
Code: 71068
Phoenix 1007352 I/O component Axioline Bus Axioline F local bus 100 Mbps Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$371.04
Sale Price
$309.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1007352 The Axioline F is a function module that features pulse width modulation, supporting a local bus transmission speed of 100 Mbps. It also boasts a level of protection equivalent to IP20, which includes the base module and Axioline F connectors as part of its design.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Nominal current per output: 500 mA (at 24 V DC), 10 mA (at 5 V DC)
Output of 5 V or 24 V signals
Push-pull output
2 independent channels
Frequency output (0 Hz ... 65535 Hz)
Frequency resolution can be configured using the divider (1 Hz, 0.1 Hz, 0.01 Hz)
Pulse width resolution can be configured using the divider (1 ms, 0.1 ms, 0.01 ms)
Configurable pulse duty factor (0 % ... 100 %)
Device rating plate stored
Downloads
Phoenix 1007352 CAD data International.dxfPhoenix 1007352 CAD data International.pdfPhoenix 1007352 CAD data International.stpPhoenix 1007352 Configuration software International.zipPhoenix 1007352 Data Sheet English.pdfPhoenix 1007352 Device Description International.zipPhoenix 1007352 Manual English.pdfPhoenix 1007352 Manufacturers declaration English.pdfPhoenix 1007352 Manufacturers declaration International-2.pdfPhoenix 1007352 Manufacturers declaration International.pdfPhoenix 1007352 Package Slip International.pdfPhoenix 1007352 Tender Text English.zipPhoenix 1007352 Various English.pdf
