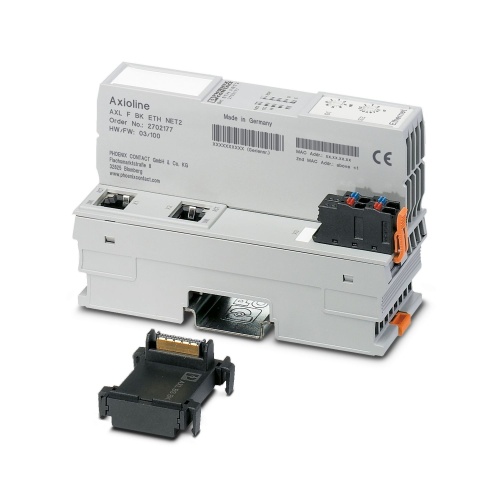

Phoenix Contact 2702177 Bus coupler AXL F BK ETH NET2
Normally In Stock
Code: 71067
Phoenix 2702177 I/O component Axioline Bus Axioline F connector 10/100 Mbps Push-in connection,RJ45 jack,Bus base module,Micro USB type B PLC & IO
Condition: New
Usually ships Same Day or Next Day$1195.93
Sale Price
$996.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

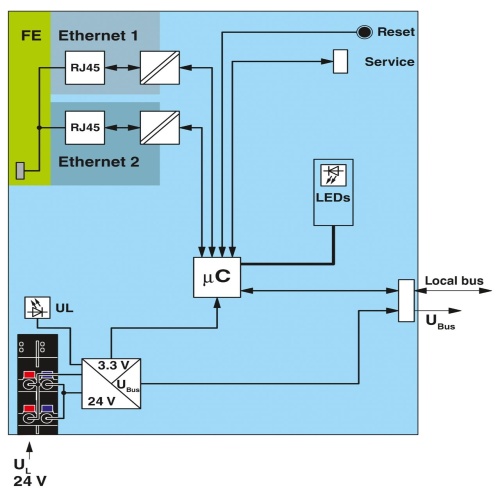

Phoenix Contact 2702177 The Axioline F features a bus coupler with two network connections via an RJ45 jack, supporting a local bus transmission speed of 100 Mbps. The device has a degree of protection rating of IP20, and comes equipped with both the bus base module and an Axioline F connector.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
RJ45 Jack
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
Micro USB Type B
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

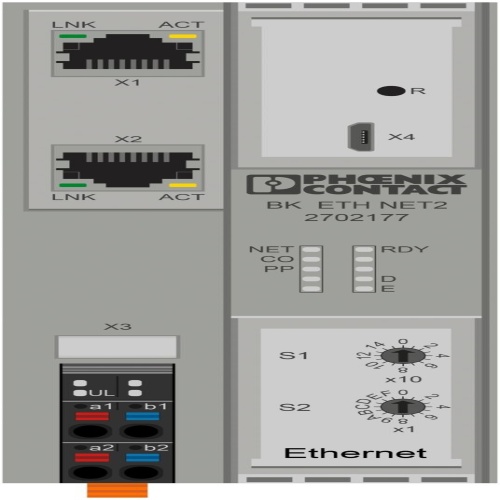

Rotary coding switches for setting the IP address assignment and other functions
2 IP addresses
Transmission speed of 10 Mbps and 100 Mbps
2 separate Ethernet ports (without integrated switch)
Modbus/TCP (UDP) support
BootP and DHCP
Firmware can be updated
Runtime in the bus coupler is negligible (almost 0 µs) (for Modbus/UDP)
Typical cycle time of the Axioline F local bus is around 10 μs
