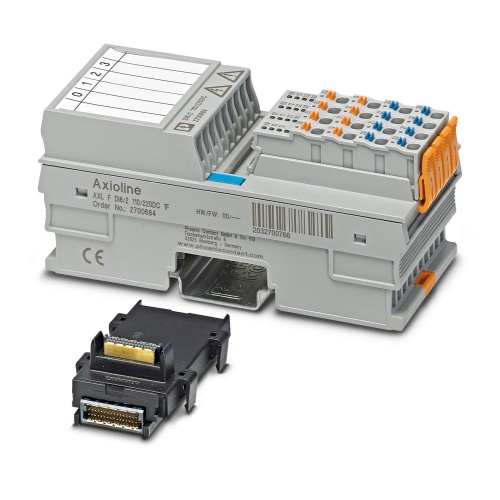

Phoenix Contact 2702654 Digital module AXL F DI8/2 48/60DC 1F
Normally In Stock
Code: 71066
AXL F DI8/2 48/60DC 1F Phoenix 2702654 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$793.13
Sale Price
$660.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702654 The Axioline F is a digital input module featuring eight channels with a DC voltage range of 48-60V. It utilizes a 2-conductor connection technology in accordance with the standard IEC 61850-3. The local bus transmission speed is 100 Mbps, and it boasts an IP20 degree of protection against environmental elements, making it a reliable solution for industrial applications, complete with a bus base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
8
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Network Interface
Axioline F Connector
PLC & IO Connection Method
Push-In Connection
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter time of < 1 ms

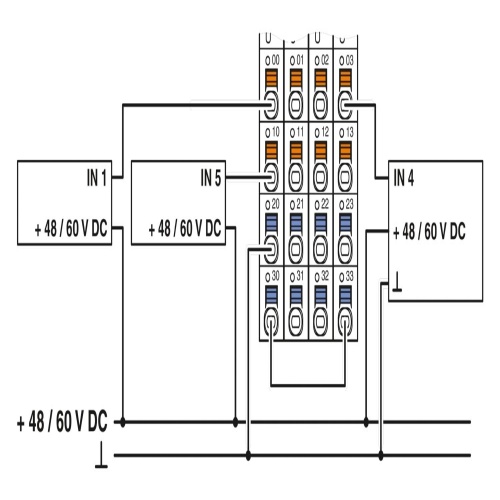

Connection of sensors in 2-conductor technology
48 V DC / 60 V DC, 2.5 mA
8 digital inputs according to EN 61131-2 type 1
Inputs are reverse polarity protected
Safe isolation in accordance with EN 61010-2-201/IEC 61010-2-201
Device rating plate stored
Diagnostic and status indicators
Meets the requirements of IEC 61850-3 and IEEE 1613
Downloads
Phoenix 2702654 CAD data International.dxfPhoenix 2702654 CAD data International.pdfPhoenix 2702654 CAD data International.stpPhoenix 2702654 Configuration software International.zipPhoenix 2702654 Data Sheet English.pdfPhoenix 2702654 Manual English.pdfPhoenix 2702654 Manufacturers declaration English.pdfPhoenix 2702654 Manufacturers declaration International-2.pdfPhoenix 2702654 Manufacturers declaration International.pdfPhoenix 2702654 Package Slip International.pdfPhoenix 2702654 Product Information English.pdfPhoenix 2702654 Tender Text English.zipPhoenix 2702654 Various English.pdf
