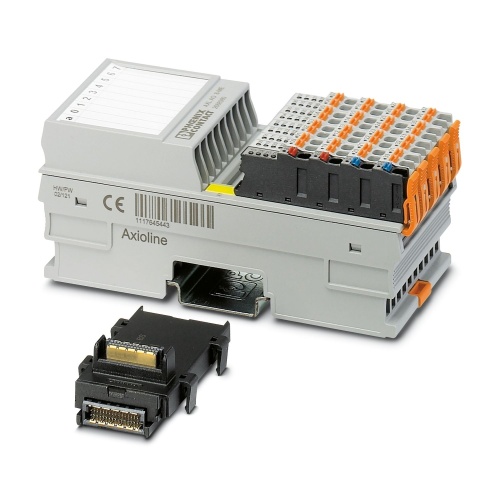

Phoenix Contact 2701237 Analog module AXL F AO8 XC 1F
Normally In Stock
Code: 71063
AXL F AO8 XC 1F Phoenix 2701237 I/O component Axioline Analog Output,Bus Axioline F local bus 100 Mbps Bus base module,Push-in connection PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$1134.64
Sale Price
$945.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701237 The Axioline F is an analog output module featuring eight channels with adjustable voltage ranges spanning from 0 to 5V, -5V to 5V, 0 to 10V, and -10V to 10V. The module also supports variable current outputs ranging from 0mA to 20mA in increments of 4mA, utilizing a 2-conductor connection technology with a local bus transmission speed of 100Mbps, designed for extreme conditions with an IP20 degree of protection, and comes equipped with both the base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Number of Analog Outputs
8
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA

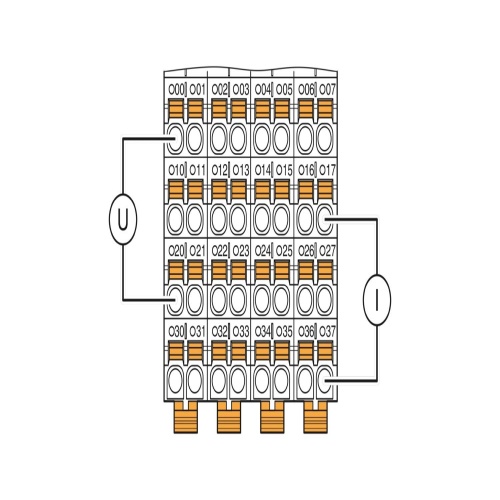

Connection of actuators in 2-conductor technology
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
8 analog, bipolar output channels for the connection of either voltage or current signals
Short-circuit-proof outputs
Device rating plate stored
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
Downloads
Phoenix 2701237 CAD data International.dxfPhoenix 2701237 CAD data International.pdfPhoenix 2701237 CAD data International.stpPhoenix 2701237 Configuration software International.zipPhoenix 2701237 Data Sheet English.pdfPhoenix 2701237 Function Module International.msiPhoenix 2701237 Manual English.pdfPhoenix 2701237 Manufacturers declaration English.pdfPhoenix 2701237 Manufacturers declaration International-2.pdfPhoenix 2701237 Manufacturers declaration International.pdfPhoenix 2701237 Package Slip International.pdfPhoenix 2701237 Tender Text English.zipPhoenix 2701237 Various English.pdf
