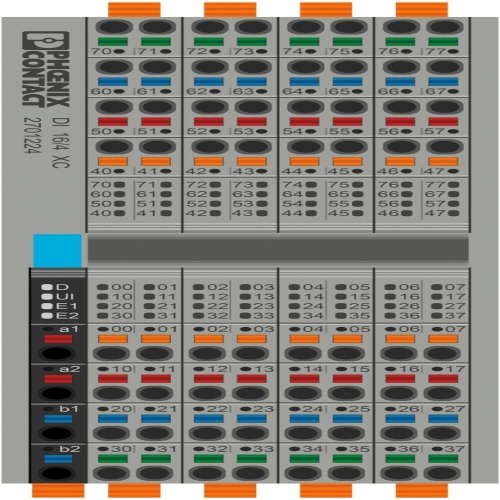

Phoenix Contact 2701224 Digital module AXL F DI16/4 XC 2F
Normally In Stock
Code: 71062
AXL F DI16/4 XC 2F Phoenix 2701224 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$416.32
Sale Price
$346.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701224 The Axioline F is a digital input module that features 16 digital inputs with a voltage range of 24 V DC. The connection technology uses a 4-conductor system, and it's designed to withstand extreme conditions. It has a transmission speed of up to 100 Mbps on the local bus, and it's protected by an IP20 rating. The module includes both a bus base and Axioline F connectors, providing a comprehensive solution for digital input applications.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter times can be adjusted in two increments: < 100 µs or 500 µs
24 V DC, 2.4 mA

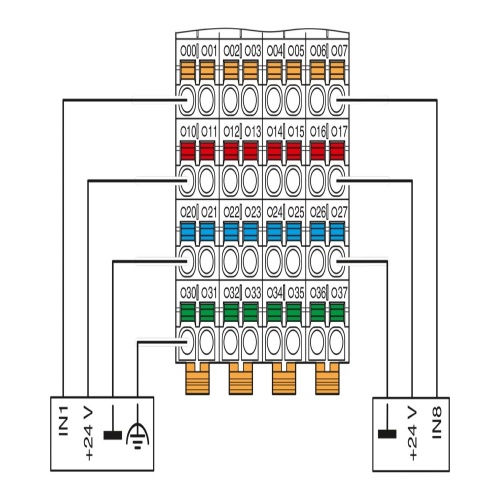

Connection of sensors in 2-, 3-, and 4-conductor technology
16 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
Maximum permissible load current per sensor: 2 A
Maximum permissible load current of the module: 4 A (2 A for each group of a max. 8 sensors)
Minimum update time of < 100 μs
Device rating plate stored
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Partially coated PCBs
Downloads
Phoenix 2701224 CAD data International.dxfPhoenix 2701224 CAD data International.pdfPhoenix 2701224 CAD data International.stpPhoenix 2701224 Configuration software International.zipPhoenix 2701224 Data Sheet English.pdfPhoenix 2701224 Manual English.pdfPhoenix 2701224 Manufacturers declaration English.pdfPhoenix 2701224 Manufacturers declaration International-2.pdfPhoenix 2701224 Manufacturers declaration International.pdfPhoenix 2701224 Package Slip International.pdfPhoenix 2701224 Tender Text English.zipPhoenix 2701224 Various English.pdf
