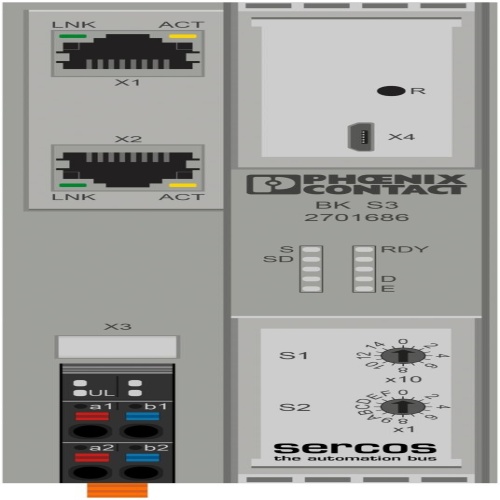

Phoenix Contact 2701686 Bus coupler AXL F BK S3
Normally In Stock
Code: 71061
AXL F BK S3 Phoenix 2701686 I/O component Axioline Bus Axioline F connector 100 Mbps Push-in connection,RJ45 jack,Bus base module,Micro USB type B PLC & IO
Condition: New
Usually ships Same Day or Next Day$810.05
Sale Price
$675.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701686 A communication device that combines a bus coupler with an RJ45 jack, capable of transmitting data at speeds up to 100 Mbps, is equipped with IP20 protection and includes a bus base module and an Axioline F connector.

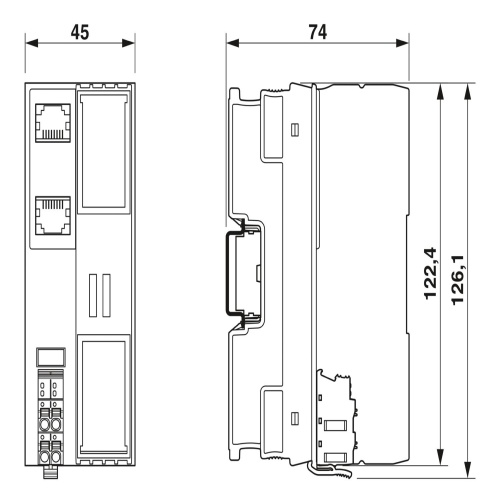

Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
RJ45 Jack
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
Micro USB Type B
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component

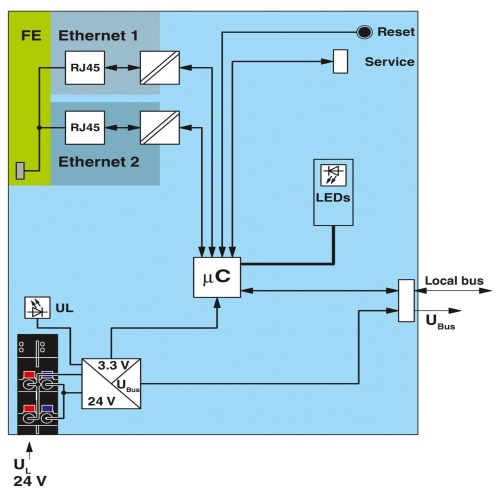

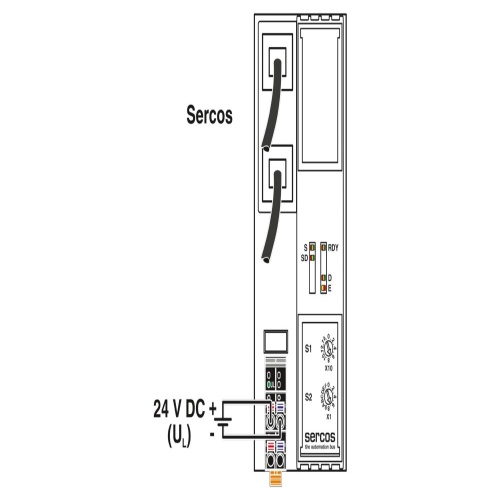

Features
Supports Sercos V1.31
Rotary coding switches for setting the Sercos address
Certified in accordance with Sercos V1.12
2 Ethernet ports (with integrated switch)
FSP-IO (Function Specific Profile-IO) for modular I/O devices
Minimum Sercos III cycle time of 31.25 µs
8 connections (max. 4 consumer and max. 4 producer connections)
Cross communication is possible up to reaching the maximum number of connections
Synchronization between fieldbus and local bus
The typical cycle time of the S20 system bus is around 10 μs
Runtime in bus coupler is negligible (almost 0 µs)
Firmware can be updated
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 1.35 or later)
Supports IOL-CONF (firmware version 1.35 or later)
