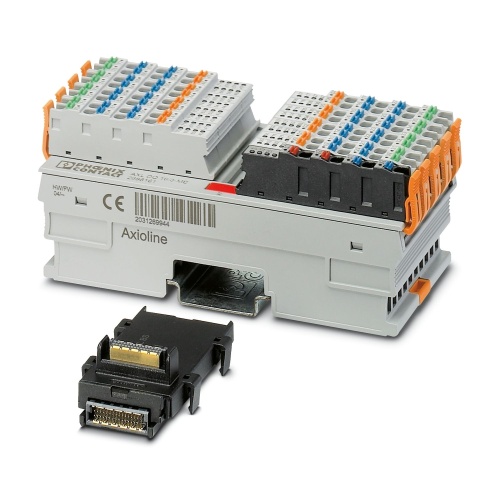

Phoenix Contact 2688048 Digital module AXL F DO16/3 2F
Normally In Stock
Code: 71051
AXL F DO16/3 2F Phoenix 2688048 I/O component Axioline Digital Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$371.04
Sale Price
$309.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688048 The Axioline F digital output module is designed with a 3-conductor connection technology that transmits data at a speed of 100 Mbps over its local bus. It features 16 or 24V DC digital outputs with a maximum current capacity of 500 mA, and is protected by an IP20 rating. The unit includes the bus base module along with Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Minimum update time of < 100 μs
24 V DC, 500 mA

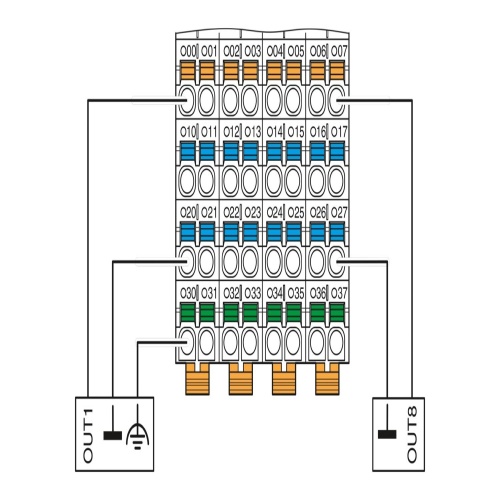

Connection of actuators in 2- and 3-conductor technology
16 digital outputs
Device rating plate stored
Downloads
Phoenix 2688048 Application Note English.pdfPhoenix 2688048 CAD data International.dxfPhoenix 2688048 CAD data International.pdfPhoenix 2688048 CAD data International.stpPhoenix 2688048 CAD data International.zipPhoenix 2688048 Configuration software International.zipPhoenix 2688048 Data Sheet English.pdfPhoenix 2688048 Manual English.pdfPhoenix 2688048 Manufacturers declaration English.pdfPhoenix 2688048 Manufacturers declaration International-2.pdfPhoenix 2688048 Manufacturers declaration International.pdfPhoenix 2688048 Package Slip International-2.pdfPhoenix 2688048 Tender Text English.zipPhoenix 2688048 Various English.pdf
