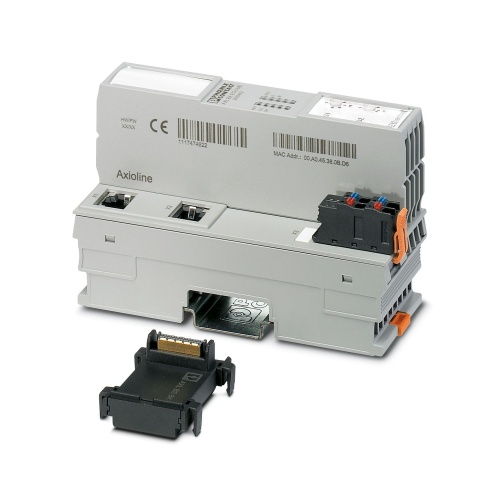

Phoenix Contact 2688459 Bus coupler AXL F BK ETH
Normally In Stock
Code: 71050
AXL F BK ETH Phoenix 2688459 I/O component Axioline Bus Axioline F connector 10/100 Mbps Push-in connection,RJ45 jack,Bus base module,USB type C (as of HW 05) PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$810.05
Sale Price
$675.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688459 The Axioline F features a Bus coupler for connecting devices, supports communication protocols such as Modbus TCP/UDP via an RJ45 jack, operates at a local bus transmission speed of 100 Mbps, is protected by an IP20 rating, and includes the Axioline F connector and base module.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
RJ45 Jack
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
USB Type C (As Of HW 05)
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Firmware can be updated
Transmission speed of 10 Mbps and 100 Mbps

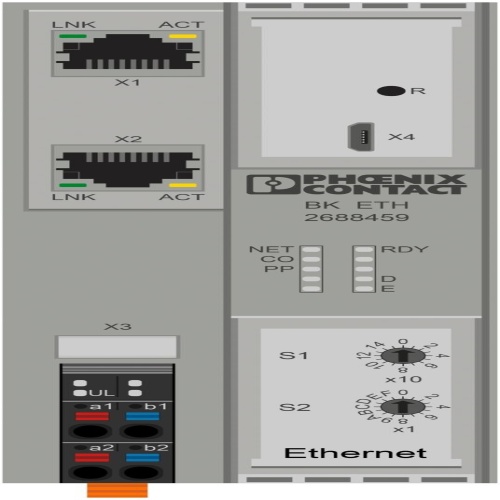

Rotary coding switches for setting the IP address assignment and other functions
2 Ethernet ports (with integrated switch)
Runtime in the bus coupler is negligible (almost 0 µs) (for Modbus/UDP)
Typical cycle time of the Axioline F local bus is around 10 μs
Web-based management
Security in the network: Port disconnection possible via web-based management (firmware version 1.31 or later)
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 1.30 or later)
Supports IOL-CONF (firmware version 1.30 and later)
Supports Diag+
Downloads
Phoenix 2688459 Application Note English-2.pdfPhoenix 2688459 Application Note English-3.pdfPhoenix 2688459 Application Note English-4.pdfPhoenix 2688459 Application Note English-5.pdfPhoenix 2688459 Application Note English.pdfPhoenix 2688459 Application Note International.pdfPhoenix 2688459 CAD data International.dxfPhoenix 2688459 CAD data International.pdfPhoenix 2688459 CAD data International.stpPhoenix 2688459 Configuration software International.zipPhoenix 2688459 Data Sheet English.pdfPhoenix 2688459 Manual English.pdfPhoenix 2688459 Manufacturers declaration International-2.pdfPhoenix 2688459 Manufacturers declaration International.pdfPhoenix 2688459 Package Slip International.pdfPhoenix 2688459 Product Information English.pdfPhoenix 2688459 Quick Start Guide English.pdfPhoenix 2688459 Software English.exePhoenix 2688459 Software International.exePhoenix 2688459 Software International.zipPhoenix 2688459 Tender Text English.zipPhoenix 2688459 Various English.pdfPhoenix 2688459 Various International.zip
