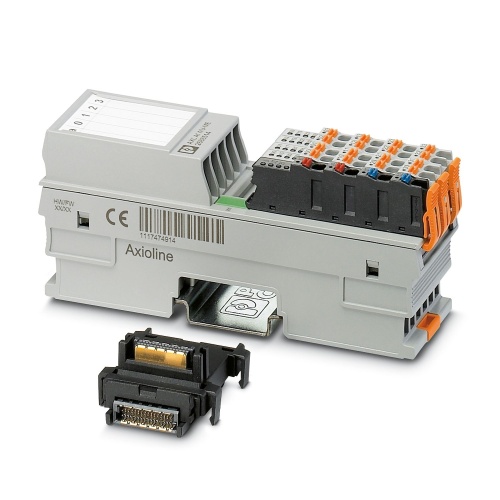

Phoenix Contact 2688501 Analog module AXL F AI4 U 1H
Normally In Stock
Code: 71047
AXL F AI4 U 1H Phoenix 2688501 I/O component Axioline Analog Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$590.69
Sale Price
$492.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688501 The Axioline F is an analog input module that features four different voltage ranges with corresponding negative values, spanning from 0 to 5 volts. It supports various connection technologies such as 2-, 3-, or 4-conductor connections and operates at a local bus transmission speed of 100 Mbps. The module also includes integrated sensor supply and is protected by an IP20 rating, while featuring both a base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
PLC & IO Number of Analog Inputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Simultaneous scanning of all channels by means of simultaneous sampling

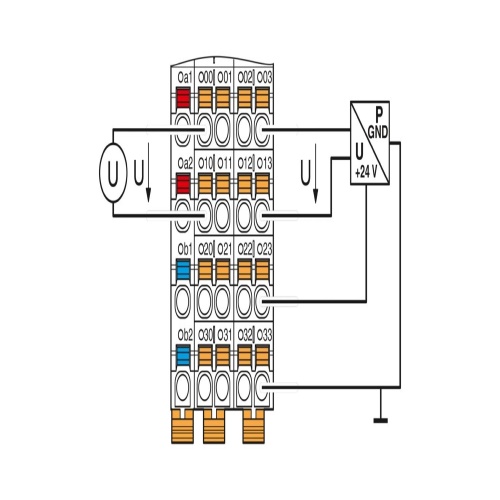

Connection of sensors in 2-, 3-, and 4-conductor technology
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
4 analog, bipolar input channels for the connection of voltage signals
High crosstalk attenuation between the channels, thanks to separate signal paths
Particularly robust against electromagnetic interference
Device rating plate stored
