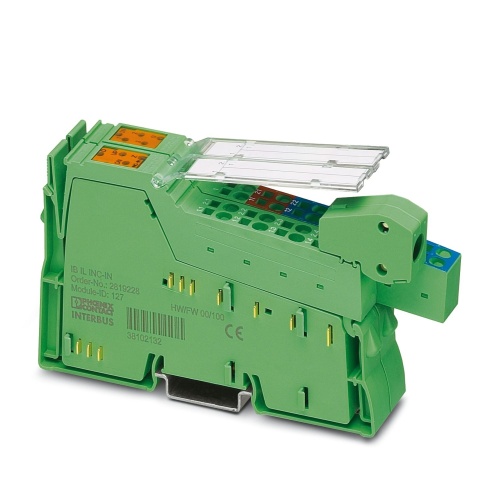

Phoenix Contact 2819765 Function module IB IL INC-IN-2MBD-PAC
Normally In Stock
Code: 71045
IB IL INC-IN-2MBD-PAC Phoenix 2819765 I/O component Inline Digital Input,Terminal Inline local bus Inline data jumper PLC & IO
Condition: New
Usually ships Same Day or Next Day$582.84
Sale Price
$485.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

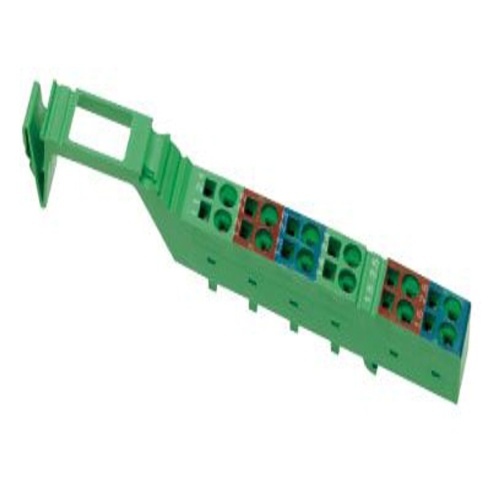

Related Products
Description
Phoenix Contact 2819765 The device supports inline, position detection terminal, and incremental encoder input using symmetrical encoders according to EIA-422 and asymmetrical encoders. It also has digital inputs with a voltage range of 24 V DC, and one digital output capable of handling 0.5 A current. The local bus transmission speed is 2 Mbps, with an IP20 degree of protection that includes inline connectors and marking fields.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Three digital inputs for connecting two limit switches or a home position switch
Supports incremental encoder with asymmetrical signals (push-pull)
Supplies encoder with 5 V or 24 V voltage
Supports incremental encoders with symmetrical signals in accordance with EIA standard RS-422 (line driver)
Maximum input frequency: 300 kHz
25-bit actual position value
Precise evaluation via 1x, 2x, or 4x sampling
Direction of rotation indicator via LED
Downloads
Phoenix 2819765 Application Note English.pdfPhoenix 2819765 CAD data International.dxfPhoenix 2819765 Data Sheet English.pdfPhoenix 2819765 Function Module International.msiPhoenix 2819765 Function Module International.zipPhoenix 2819765 Manual English.pdfPhoenix 2819765 Manufacturers declaration English.pdfPhoenix 2819765 Manufacturers declaration International-2.pdfPhoenix 2819765 Manufacturers declaration International.pdfPhoenix 2819765 Package Slip International-2.pdfPhoenix 2819765 Package Slip International.pdfPhoenix 2819765 Tender Text English.zipPhoenix 2819765 Various English.pdf
