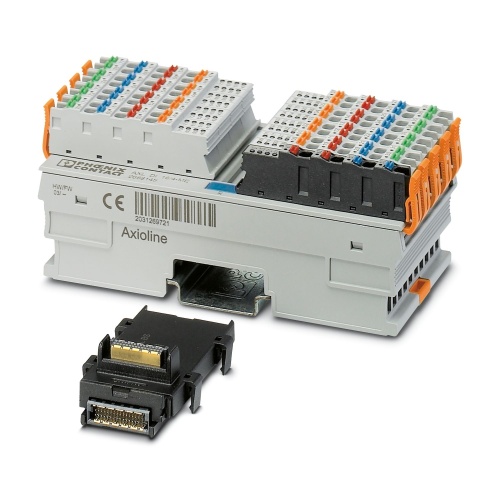

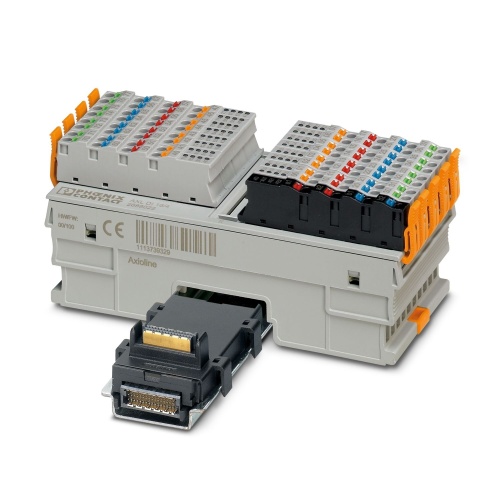

Phoenix Contact 2688022 Digital module AXL F DI16/4 2F
Normally In Stock
Code: 71043
AXL F DI16/4 2F Phoenix 2688022 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships Same Day or Next Day$362.69
Sale Price
$302.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

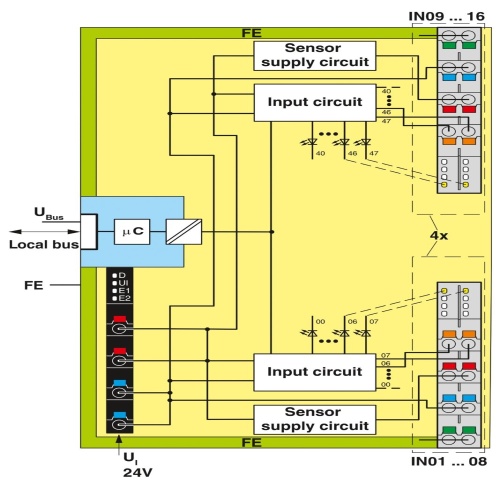

Phoenix Contact 2688022 The Axioline F is a digital input module that features 16 digital inputs, requiring a DC power supply of 24V. It utilizes a 4-conductor connection technology and operates at a local bus transmission speed of 100 Mbps. The device is designed with an IP20 degree of protection, consisting of both the bus base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Filter times can be adjusted in two increments: < 100 µs or 500 µs
24 V DC, 2.4 mA

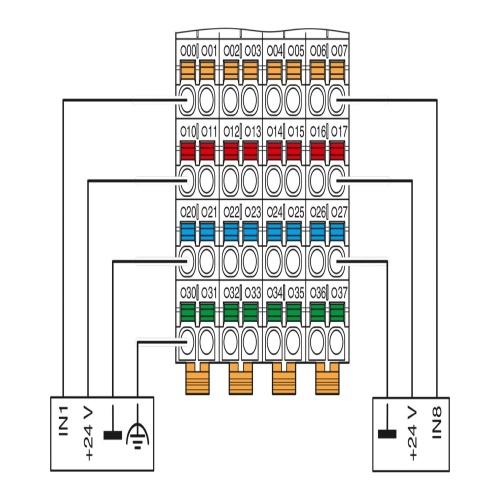

Connection of sensors in 2-, 3-, and 4-conductor technology
16 digital inputs in accordance with EN 61131-2 type 1 and type 3
Maximum input frequency: 5 kHz
Maximum permissible load current per sensor: 2 A
Maximum permissible load current of the module: 4 A (2 A for each group of a max. 8 sensors)
Minimum update time of < 100 μs
Device rating plate stored
Downloads
Phoenix 2688022 CAD data International.dxfPhoenix 2688022 CAD data International.pdfPhoenix 2688022 CAD data International.stpPhoenix 2688022 Configuration software International.zipPhoenix 2688022 Data Sheet English.pdfPhoenix 2688022 Manual English.pdfPhoenix 2688022 Manufacturers declaration English.pdfPhoenix 2688022 Manufacturers declaration International-2.pdfPhoenix 2688022 Manufacturers declaration International.pdfPhoenix 2688022 Package Slip International-2.pdfPhoenix 2688022 Package Slip International.pdfPhoenix 2688022 Product Information English.pdfPhoenix 2688022 Tender Text English.zipPhoenix 2688022 Various English.pdf
