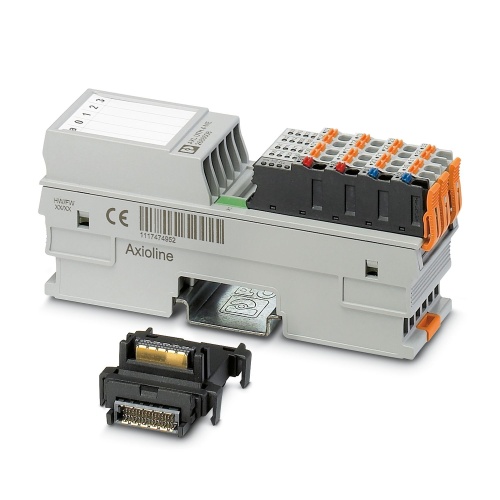

Phoenix Contact 2688598 Temperature module AXL F UTH4 1H
Normally In Stock
Code: 71042
AXL F UTH4 1H Phoenix 2688598 I/O component Axioline Analog Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module,Spring-cage connection with direct connector-in method PLC & IO
Condition: New
Usually ships Same Day or Next Day$625.03
Sale Price
$520.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688598 The Axioline F temperature recording module features 4 analog inputs for thermocouples or linear voltage, along with a single input allowing for voltage signals between -5V and +5V. It utilizes 2-conductor shielded twisted pair connection technology and operates at a local bus transmission speed of 100 Mbps, is rated IP20 for protection against dust and water ingress, and includes both the base module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Connection Method
Spring-Cage Connection With Direct Connector-In Method
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
PLC & IO Number of Analog Inputs
5
Component
I/O Component
Features
Internal detection and compensation of cold junction temperature (can be parameterized)
1 analog input channel for the connection of voltages from -5 V to +5 V

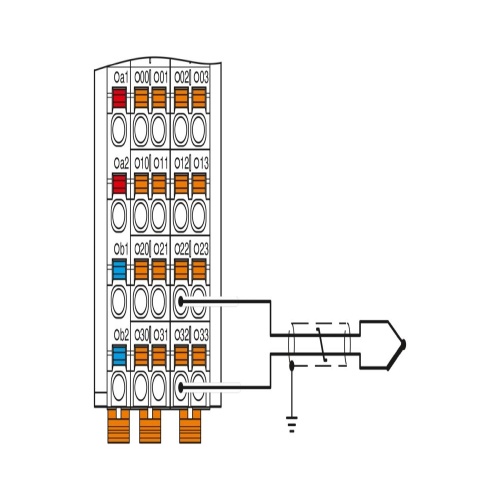

Connection of sensors in 2-conductor technology

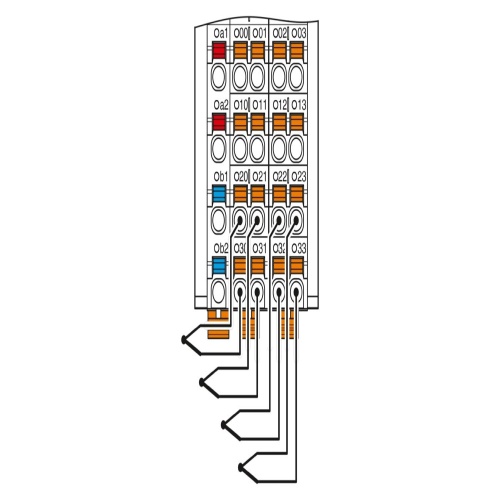

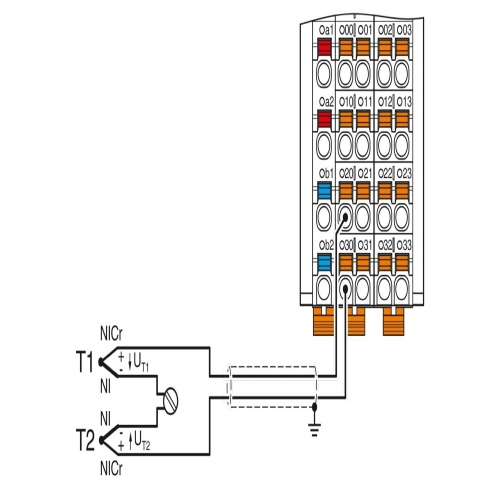

4 analog input channels to connect thermocouples or linear voltages from -100 mV to +100 mV
External connection of Pt 100 cold junction sensors possible
Low tolerances (typically ±0.01% for sensor type K)
Very low measuring tolerances, even in various mounting positions, due to built-in space compensation of the internal cold junction
High temperature stability (typically 8 ppm/K)
High resistance to electromagnetic interference (Class A)
"Channel Scout" function
Device rating plate stored

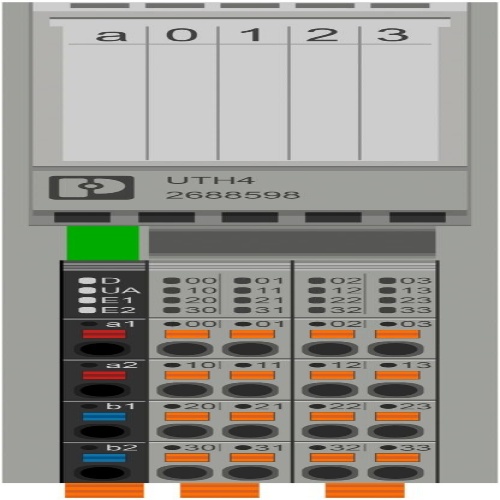

Installation monitoring with indication via diagnostic LED for each channel
Downloads
Phoenix 2688598 CAD data International.dxfPhoenix 2688598 CAD data International.pdfPhoenix 2688598 CAD data International.stpPhoenix 2688598 Configuration software International.zipPhoenix 2688598 Data Sheet English.pdfPhoenix 2688598 Manual English.pdfPhoenix 2688598 Manufacturers declaration English.pdfPhoenix 2688598 Manufacturers declaration International-2.pdfPhoenix 2688598 Manufacturers declaration International.pdfPhoenix 2688598 Package Slip International.pdfPhoenix 2688598 Tender Text English.zipPhoenix 2688598 Various English.pdf
