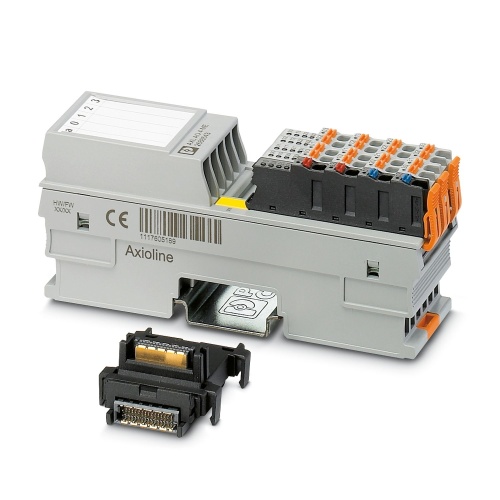

Phoenix Contact 2688527 Analog module AXL F AO4 1H
Normally In Stock
Code: 71041
AXL F AO4 1H Phoenix 2688527 I/O component Axioline Analog Output,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$718.32
Sale Price
$598.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688527 The Axioline F is an analog output module that features four analog outputs spanning from 0 to 5 volts and -5 to 10 volts. It also has multiple current ranges, including 0-20 mA with a specific configuration of 4mA and 20mA. The connection technology used is 2-conductor, allowing for high-speed transmission via the local bus at 100 Mbps. This module includes both a bus base module and Axioline F connectors, providing it with an IP20 degree of protection against dust and water ingress.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Number of Analog Outputs
4
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
Bipolar voltage outputs, unipolar current outputs

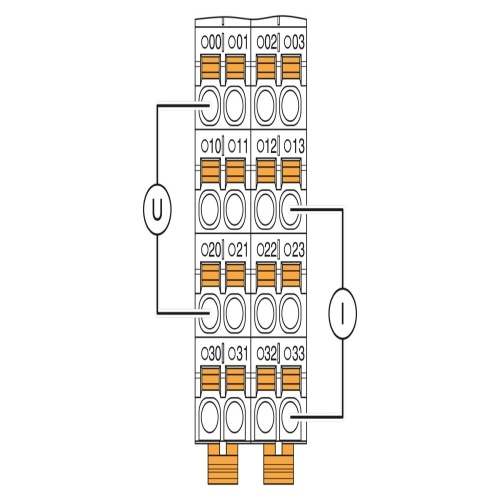

Connection of actuators in 2-conductor technology
4 analog output channels for the connection of either voltage or current signals
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA
Short-circuit-proof outputs
No derating in all ranges
Short signal rise times
Driving of high loads
Device rating plate stored
