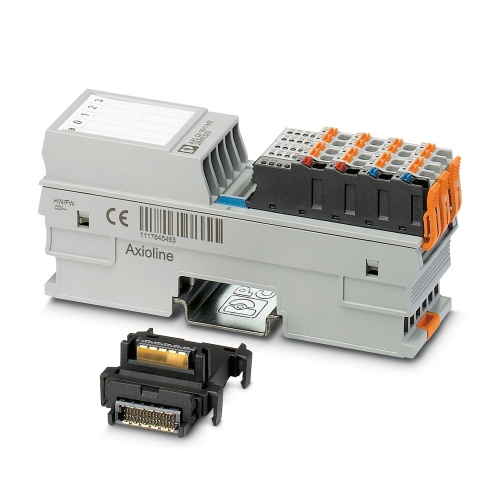

Phoenix Contact 2688310 Digital module AXL F DI16/1 1H
Normally In Stock
Code: 71036
AXL F DI16/1 1H Phoenix 2688310 I/O component Axioline Digital Input,Bus Axioline F connector 100 Mbps Push-in connection,Bus base module PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$299.18
Sale Price
$249.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688310 The Axioline F digital input module features 16 digital inputs with a voltage range of 24V DC, utilizing a single-conductor connection technology. It transmits data at a local bus speed of 100 Mbps and is protected by an IP20 rating, including the base bus module and Axioline F connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Minimum update time of < 100 μs
24 V DC, 2.4 mA

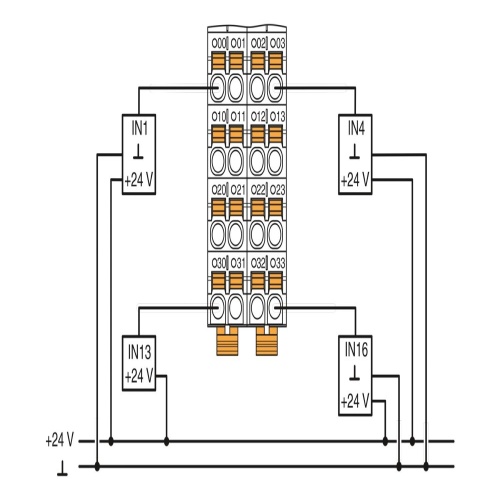

Connection of sensors in 1-conductor technology
16 digital inputs in accordance with EN 61131-2 type 1 and type 3
Filter times can be adjusted in three increments: < 100 µs, 1000 µs or 3000 µs
Maximum input frequency: 5 kHz
Device rating plate stored
Downloads
Phoenix 2688310 CAD data International.dxfPhoenix 2688310 CAD data International.pdfPhoenix 2688310 CAD data International.stpPhoenix 2688310 Configuration software International.zipPhoenix 2688310 Data Sheet English.pdfPhoenix 2688310 Manual English.pdfPhoenix 2688310 Manufacturers declaration English.pdfPhoenix 2688310 Manufacturers declaration International-2.pdfPhoenix 2688310 Manufacturers declaration International.pdfPhoenix 2688310 Package Slip International.pdfPhoenix 2688310 Product Information English.pdfPhoenix 2688310 Tender Text English.zipPhoenix 2688310 Various English.pdf
