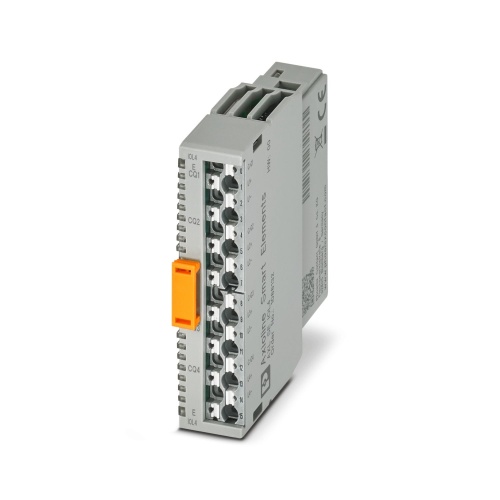

Phoenix Contact 1088132 Communication module AXL SE IOL4
Normally In Stock
Code: 70934
AXL SE IOL4 Phoenix 1088132 I/O component Axioline I/O See system in which you use the Smart Element Push-in connection,Card edge connector PLC & IO *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$206.58
Sale Price
$172.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

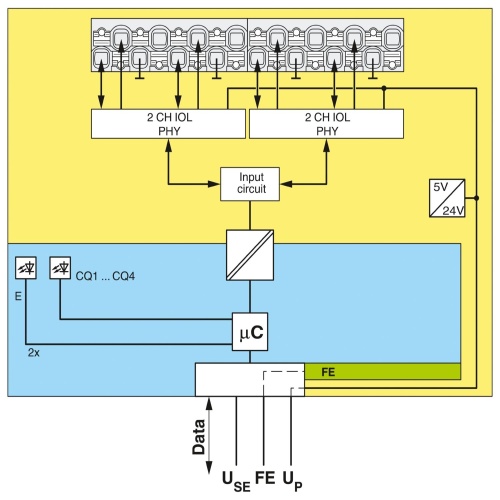

Phoenix Contact 1088132 Axioline Smart Elements feature an IO-Link master and ports that conform to Class A, allowing for a push-in connection using a 3-conductor connection technology with an IP20 degree of protection.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
Card Edge Connector
PLC & IO Network Interface
Smart Element Interface
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

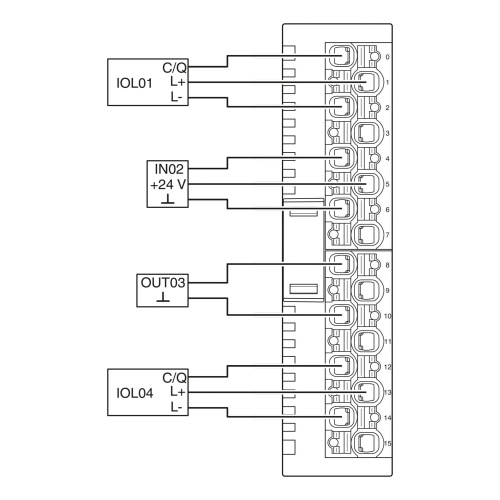

Connection of sensors in 3-conductor technology
Alternatively: connection of one digital sensor or actuator per port
Connection of IO-Link devices in 3-conductor technology
Connection of 4 IO-Link devices
Connection of actuators in 2- and 3-conductor technology
Parameter data storage on the master
IO-Link specification V1.1.2
Substitute value behavior of inputs and outputs can be parameterized for each port
IOL-CONF supported
Device rating plate stored
Downloads
Phoenix 1088132 Application Note English.pdfPhoenix 1088132 Application Note International.pdfPhoenix 1088132 CAD data International.dxfPhoenix 1088132 CAD data International.pdfPhoenix 1088132 CAD data International.stpPhoenix 1088132 Configuration software International.zipPhoenix 1088132 Data Sheet English.pdfPhoenix 1088132 Device Description English.zbcPhoenix 1088132 Manual English.pdfPhoenix 1088132 Manufacturers declaration English.pdfPhoenix 1088132 Manufacturers declaration International.pdfPhoenix 1088132 Tender Text English.zip
