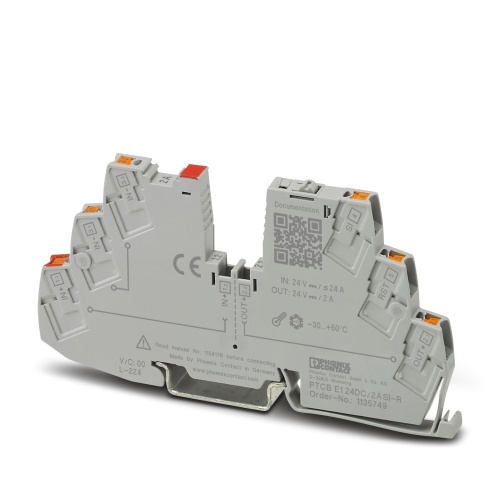

Phoenix Contact 1135749 Electronic circuit breaker PTCB E1 24DC/2A SI-R
Normally In Stock
Code: 70849
PTCB E1 24DC/2A SI-R Phoenix 1135749 Device circuit breakers 24 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships within 7-14 days. Call for ship time$35.05
Sale Price
$29.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1135749 A one-channel electronic fuse is designed to protect 24V loads, providing an easy means of distributing power through terminal blocks from the CLIPLINE complete system, which also features a status output, reset input, and electronic interlock, suitable for installation on DIN rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Breaker Function
Reset Input
Breaker Function
Status Output
Breaker Amperage Rating
24 Amp
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features
Simple application setup due to bridging option to CLIPLINE complete terminal block system
More space in the control cabinet: narrowest protection on just 6 mm width
Individual setup for suitable protection, exactly according to your requirements
Enhanced diagnostic and control options, thanks to integrated status output and reset input
Optimum protection for cables and sensors as well as NEC Class 2 circuits by means of an additional internal output fuse
Downloads
Phoenix 1135749 CAD data International.dxfPhoenix 1135749 CAD data International.pdfPhoenix 1135749 CAD data International.stpPhoenix 1135749 Flyer English-2.pdfPhoenix 1135749 Flyer English.pdfPhoenix 1135749 Manufacturers declaration International.pdfPhoenix 1135749 Package Slip International.pdfPhoenix 1135749 Tender Text English.zipPhoenix 1135749 Various English.pdf
