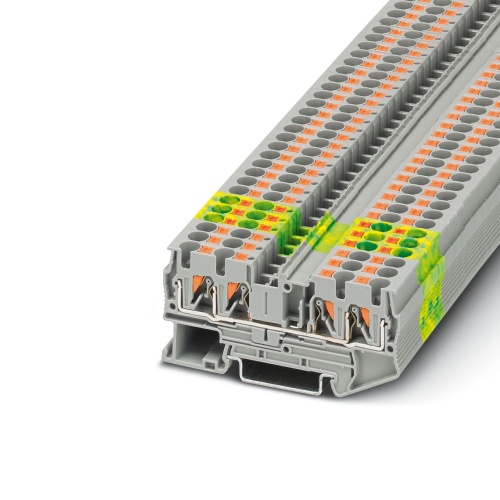

Phoenix Contact 3211797 Feed-through terminal block PT 4-QUATTRO
Normally In Stock
Code: 42292
PT 4-QUATTRO Phoenix Contact 3211797 Feed Through Terminal Block - PT 4-QUATTRO Push-In Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 800 V, 38 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.38
Sale Price
$2.82
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211797 The terminal block features a feed-through design with specific parameters: it has a nominal voltage of 800V and can handle a maximum nominal current of 32A. It has four connections made using push-in technology, with rated cross sections ranging from 0.2mm² to 6mm². The terminal block is mounted using two types of clips, NS35/7.5 and NS35/15, and it has a gray color, providing a durable and reliable connection solution for various applications.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3211797 CAD data International.dxfPhoenix 3211797 CAD data International.pdfPhoenix 3211797 CAD data International.stpPhoenix 3211797 Certification English-2.pdfPhoenix 3211797 Certification English.pdfPhoenix 3211797 Manufacturers declaration International-2.pdfPhoenix 3211797 Manufacturers declaration International-3.pdfPhoenix 3211797 Manufacturers declaration International-4.pdfPhoenix 3211797 Manufacturers declaration International.pdfPhoenix 3211797 Safety note English.pdfPhoenix 3211797 Tender Text English.zipPhoenix 3211797 User instructions for the Ex Area International.pdf
