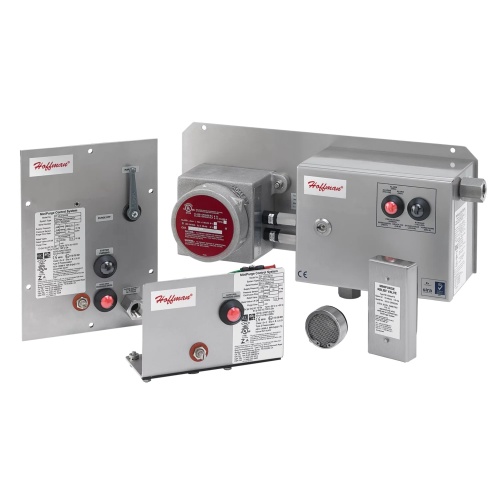

Hoffman PLCSKIT Purge and Pressurization System Leakage Compensation Service Ki

Hoffman PLCSKIT Purge and Pressurization System Leakage Compensation Service Ki Purge and Pressurization is a protection method used with Type 4, 4X and 12 (IP54 recommended minimum) enclosures. The enclosure is initially purged to remove any internal explosive gases or dust. Once this is accomplished, the enclosure is pressurized with a protective air or inert gas supply. This provides a positive internal enclosure pressure which keeps any external explosive gases or dust from entering the enclosure.

Specifications
Component	Purge and Pressurization
(Pressure-Humidity Component) Mount Type	Flush Mount
(Pressure-Humidity Component) Operation Type	Leak Compensation
(Pressure-Humidity Component) Mount Type	Exterior Mount
Sub Component	Leakage Compensation Service Ki
(Pressure-Humidity Component) Composition	Stainless Steel
Manufacturer	Hoffman
