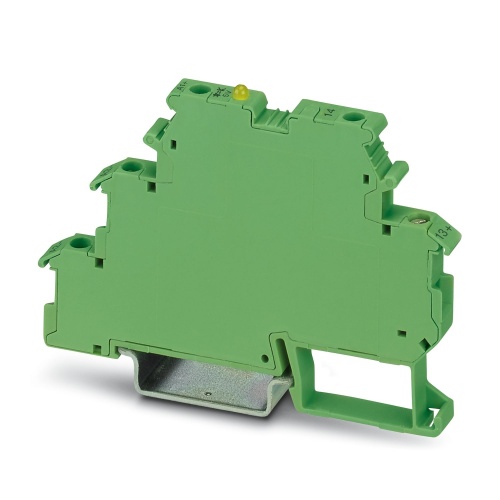

Phoenix Contact 2941361 Solid-state relay terminal block DEK-OV- 5DC/ 24DC/ 3
Normally In Stock
Code: 68670
Phoenix 2941361 Solid-state relay module 5 VDC Screw connection Input Function,Output Function Relays
Condition: New
Usually ships Same Day or Next Day$195.05
Sale Price
$162.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2941361 The power solid-state relay terminal block has an input voltage requirement of 5V DC and can supply an output voltage range of 3-30V DC with a maximum current capacity of 3A, featuring a compact terminal block width of 6.2mm.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
11 Mamp
Relay Load Voltage DC Rating
3 Volt - 30 Volt
Coil Voltage Rating
4-6 Volt
Features
Wear-free switching of up to 24 V DC/10 A or 240 V AC/800 mA
EB-DIK insertion bridges
Labeling and mounting with user-friendly modular terminal blocks
Actuator version available
Integrated output protective circuit
Status indicator
Integrated input circuit
Zero voltage switch at AC output
Electrical isolation between input and output at up to 2.5 kVrms
Downloads
Phoenix 2941361 Application Note English.pdfPhoenix 2941361 CAD data International.dxfPhoenix 2941361 CAD data International.pdfPhoenix 2941361 CAD data International.stpPhoenix 2941361 Data Sheet English.pdfPhoenix 2941361 Manufacturers declaration English.pdfPhoenix 2941361 Manufacturers declaration International.pdfPhoenix 2941361 Package Slip International.pdfPhoenix 2941361 Product Information English.pdfPhoenix 2941361 Tender Text English.zip
