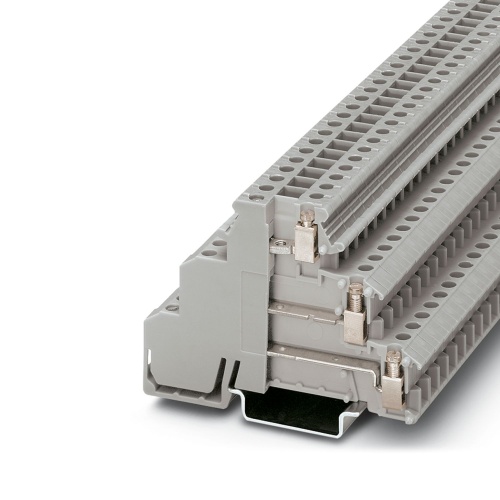

Phoenix Contact 2715979 Initiator/actuator terminal block DIKD 1,5
Normally In Stock
Code: 1735
DIKD 1,5 Phoenix Contact 2715979 Phoenix Contact DIKD 1.5, Gray Three Level Sensor-Actuator 6.2 mm Terminal Block with 3 feed through levels (screw connection), 250 V, 30 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.59
Sale Price
$10.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2715979 A terminal block with an initiator function is available with a nominal voltage of 250 V and a maximum current rating of 24 A, featuring a screw connection method for levels 1st, 2nd, and 3rd. The rated cross-sectional area ranges from 0.2 mm² to 4 mm², while the terminal block itself comes in two mounting types (NS 35/7.5 and NS 35/15) and has a gray color option.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

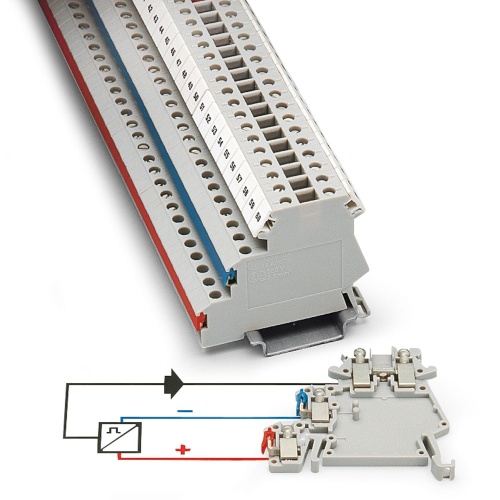

The positive and negative potential can be supplied to the insertion bridges via this power terminal block
The first initiator can also be connected to this three-conductor feed-through terminal block
