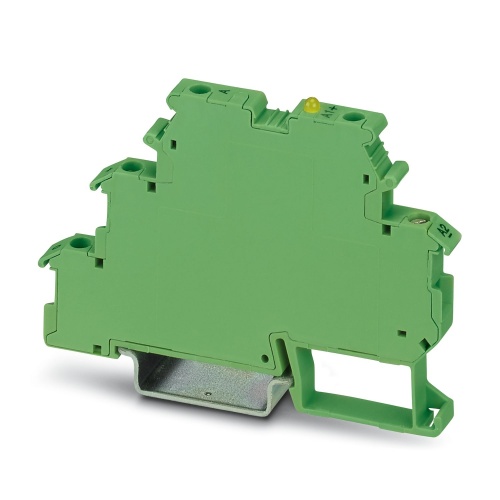

Phoenix Contact 2964348 Solid-state relay terminal block DEK-OE- 24DC/ 24DC/100KHZ-G
Normally In Stock
Code: 68651
Phoenix 2964348 Solid-state relay module 24 VDC Screw connection Input Function,Output Function Relays
Condition: New
Usually ships Same Day or Next Day$199.78
Sale Price
$166.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

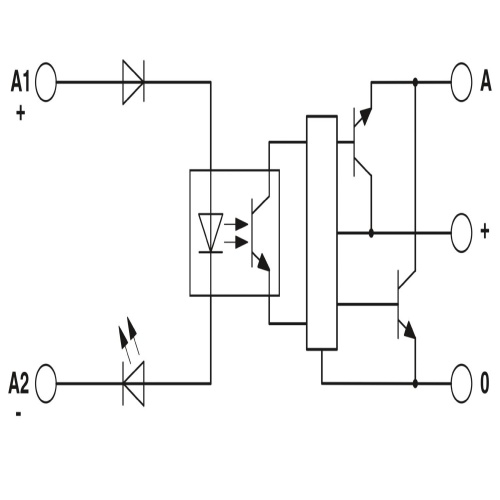

Phoenix Contact 2964348 The device features a solid-state relay with a DC output, operating at a transmission frequency of 100 kHz, accompanied by a light indicator and protective circuitry in both the input and output sections. The device requires an input power supply of 24V DC, while its output voltage ranges between 14-30V DC and has a maximum current capacity of 50mA.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
8 Mamp
Relay Application
Input Function Output Function
Relay Load Voltage DC Rating
14 Volt - 30 Volt
Coil Voltage Rating
110-127 Volt
Features
Includes signal inputs on PLC counter boards
Push/pull stage on output side
Limit frequency of up to 100 kHz
With capacitor on the input side for interference suppression
Downloads
Phoenix 2964348 Application Note English.pdfPhoenix 2964348 CAD data International.dxfPhoenix 2964348 CAD data International.pdfPhoenix 2964348 CAD data International.stpPhoenix 2964348 Manufacturers declaration English.pdfPhoenix 2964348 Manufacturers declaration International.pdfPhoenix 2964348 Product Information English.pdfPhoenix 2964348 Tender Text English.zip
