Phoenix Contact 2853404 Intermediate element ME 45 UTM GN
Normally In Stock
Code: 676075
Phoenix Contact ME 45 UTM GN - Component housing center part, 3.9" x 0.9" x 2.9" (HxWxD), Polyamide - 2853404
Condition: New
Usually ships Same Day or Next Day$4.33
Sale Price
$3.61
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

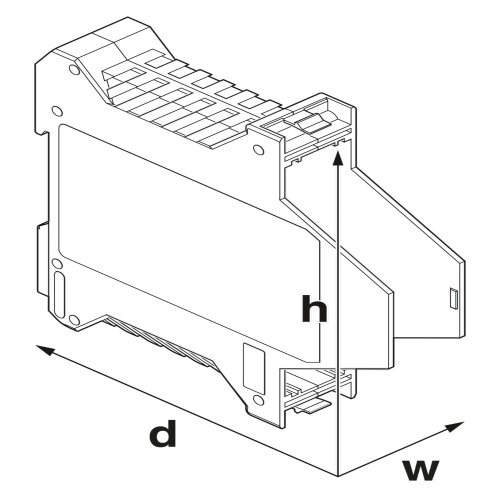

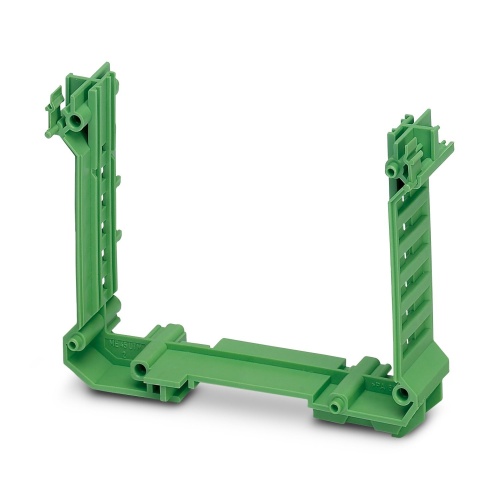

Phoenix Contact 2853404 A DIN rail housing that serves as an intermediate element for expanding the housing volume features a tall design with vents and measures 22.6mm in width, 99mm in height, and 74mm in depth. The color is green (similar to RAL 6021), while there is no bus connector present, eliminating the need for cross connection functionality.
Specifications
Enclosure Composition
Polyamide
Manufacturer
Phoenix Contact
Enclosure NEMA Rating
IP20
Component
DIN Rail Housing
Enclosure Height
3.9"
Enclosure Width
0.9"
Enclosure Depth
2.9"
Features
Tool-free mounting
Available in overall widths from 12.5 mm ... 90 mm, modular extension is possible
Flammability rating V0 in accordance with UL 94
Variety of connection technology
Can be mounted on the DIN rail
With integrated or DIN-rail-mountable bus connector as an option
