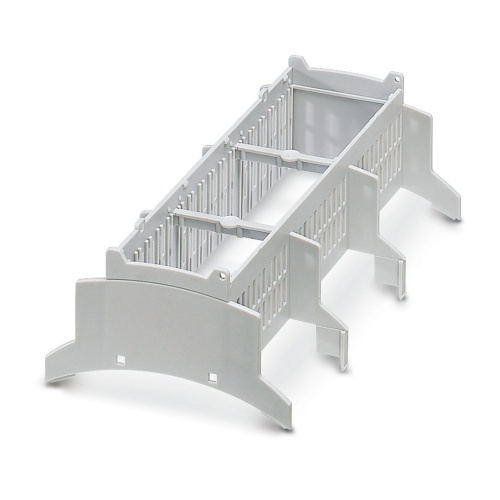

Phoenix Contact 2278526 Upper housing part BC 161,6 OT U22 KMGY
Normally In Stock
Code: 675878
Phoenix Contact BC 161,6 OT U22 KMGY - Upper housing part, 3.5" x 6.4" x 2.2" (HxWxD), Polycarbonate - 2278526
Condition: New
Usually ships Same Day or Next Day$8.09
Sale Price
$6.74
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

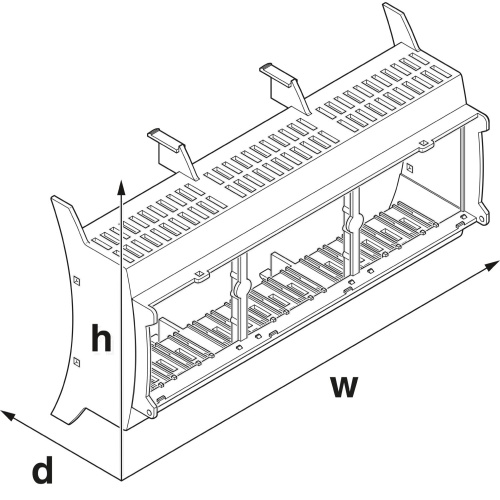

Phoenix Contact 2278526 DIN rail housing designed for use in distribution boards to the standards of DIN 43880 is available in upper parts with vents, offering an installation depth connection technology of 22.35mm and a width and height measuring 161.6mm and 89.7mm respectively, further specified as having a depth of 54.85mm, and featuring a light gray colour matching RAL 7035.
Specifications
Enclosure Composition
Polycarbonate
Enclosure Depth
2.2"
Enclosure Height
3.5"
Manufacturer
Phoenix Contact
Enclosure NEMA Rating
IP20
Enclosure Width
6.4"
Component
DIN Rail Housing
Features
Coordinated housing and connection system for faster device development
Individual online configuration for diverse applications in building automation
Variety of connection technology
Can be mounted on the DIN rail or the wall
With DIN-rail-mountable bus connector and power connector system as an option
Tool-free mounting
Available in overall widths from 1 ... 9 width units (17.8 mm ... 161.6 mm)
Compliant with DIN EN 43880
Downloads
2d view (pcb outline).dxfPhoenix Data Sheet.pdfproduct drawing.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_1.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_10.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_2.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_3.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_4.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_5.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_6.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_8.dxfpxc_2278526_05_00_BC-161-6-OT-U22-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_9.dxfpxc_2278526_05_03_BC-161-6-OT-U22-KMGY_3D.stpsimplified 3d model of the item.stpSpecification Sheet.pdf
