Code: 658508

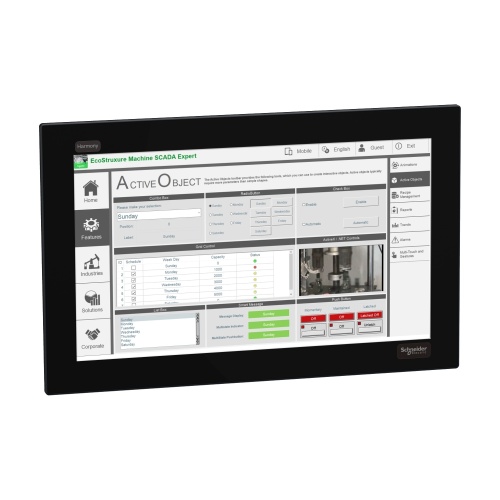

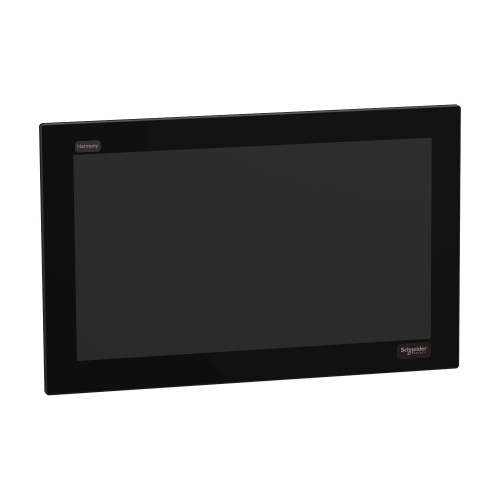

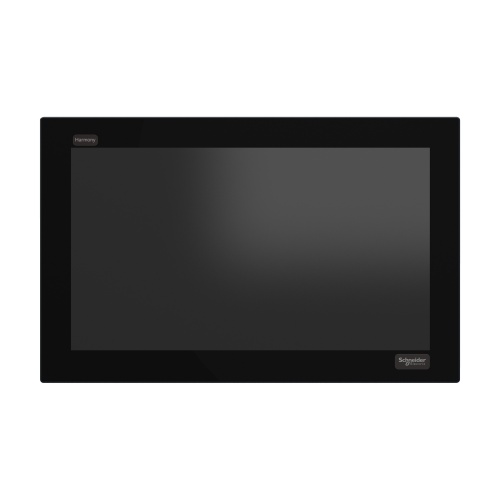

Schneider Electric HMIDM6800WC - 19w Display module, Harmony P6, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Normally In Stock
Schneider Electric HMIDM6800WC - 19w Display module, Harmony P6, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5384.62
Sale Price
$4487.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric HMIDM6800WC - 19w Display module, Harmony P6, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Specifications
Manufacturer
Schneider Electric
Features
This industrial display belongs to the Schneider Electric's Harmony HMI P6 range
This 2 point multi-touch projected capacitive HMIDM6 display has a glass-top surface design with backlight service life of 50,000 hours
This is a 18.5 inch wide screen of 16 million colors and 1920 × 1080 pixel resolution (FHD)
Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode
The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics
The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection
The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 170VAMax
(AC model) and 150WMax
(DC model), with P6 Standard Modular Box is 92VAMax
(AC model) and 82WMax
(DC model)
Its dimensions are 463.6mm (width) x 293.6mm (height) x 32mm (depth) and weighs 4.90Kg
Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure
It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No
61010-2-201 for both AC and DC models
They are configurable noise-resistive touch drivers
This display when combined with any of the Harmony P6 Boxes makes a Panel PC

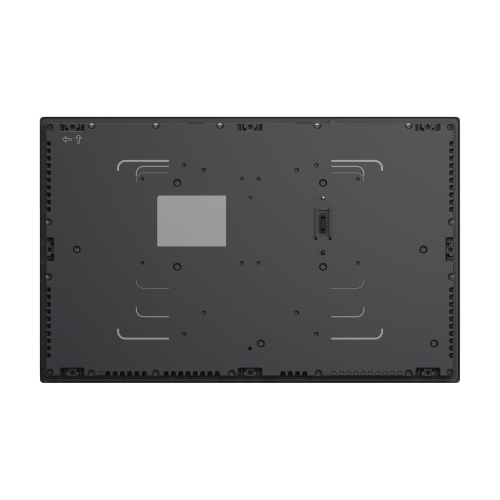

It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC
The stylish wide Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design
The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.
