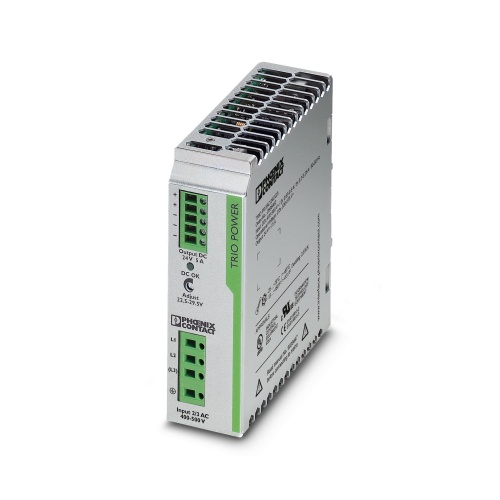

Phoenix Contact 2866462 Power supply TRIO-PS/3AC/24DC/ 5
Normally In Stock
Code: 655
Phoenix Contact TRIO-PS/3AC/24DC/5. 24 VDC output 5 Amp Power Supply 3-phase 320 -575 Vac input.. Temperature range of -13 F to 158 F. Din rail mount Screw Connection. (5.12"H x 1.57"W x 6"D).
Condition: New
Usually ships Same Day or Next Day$330.31
Sale Price
$275.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866462 This is a primary-switched TRI-O POWER power supply suitable for DIN rail installation, featuring a three-phase input and producing a stable 24V DC output of up to 5 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input
440VAC
Power Supply Voltage Input Range
360 VAC - 575 VAC
Features
Compensation of voltage drops by means of output voltage that can be adjusted on the front
Rugged design with metal housing and wide temperature range from -25 to +70°C
Maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500,000 hours and high dielectric strength of up to 300 V AC
Use the third negative terminal block as a grounding terminal block and minimize installation costs
Downloads
