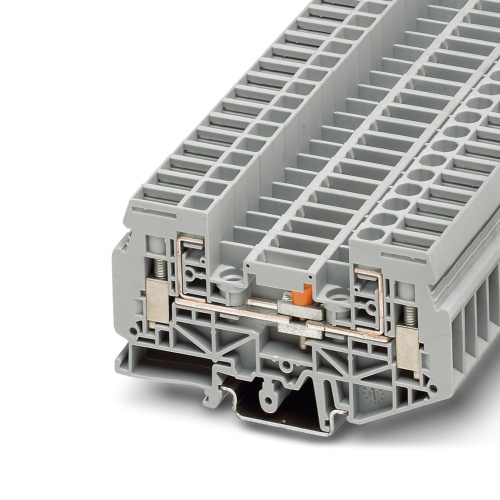

Phoenix Contact 3026272 Test disconnect terminal block URTK 6
Normally In Stock
Code: 641091
Phoenix Contact URTK 6 Test disconnect terminal block - Gray - 3026272
Condition: New
Usually Ships Same day or Next Day$33.40
Sale Price
$27.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3026272 The test disconnect terminal block has the following specifications: it is rated for a nominal voltage of 500V and a maximum current of 41A, connected by a screw method with one level of connection, featuring a cross-sectional area of 6mm² with a range of 0.5mm² to 10mm², mounted using type NS 35/7.5, NS 35/15, or NS 32 and has a gray color.
Specifications
Terminal Block Width
8.2 mm
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Test Disconnect Terminal Block
Features

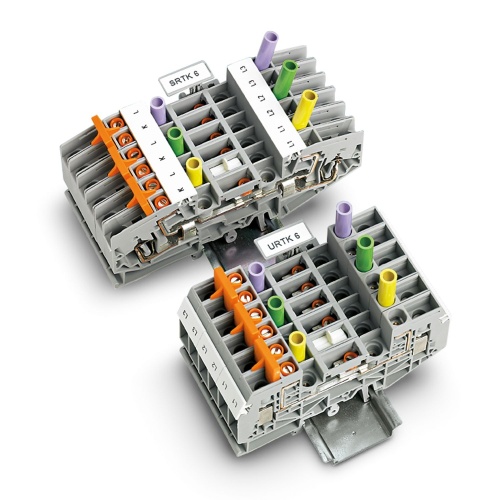

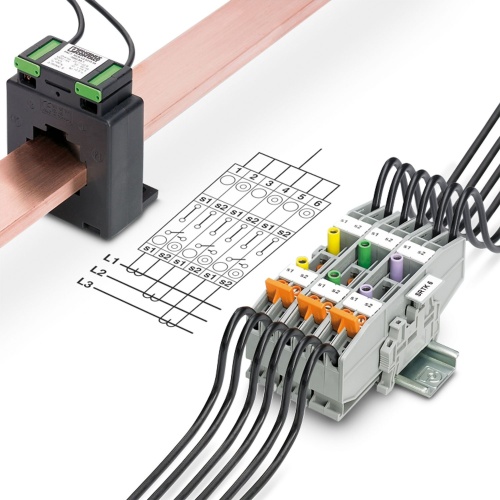

The URTK 6 test disconnect terminal block and the UGSK 6 slide-type terminal block were developed specifically for use in current transformer secondary circuits

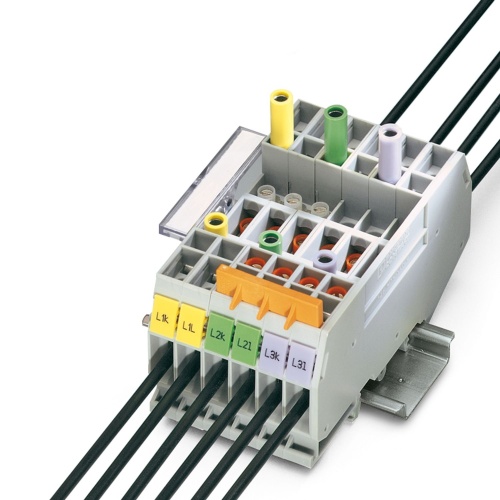

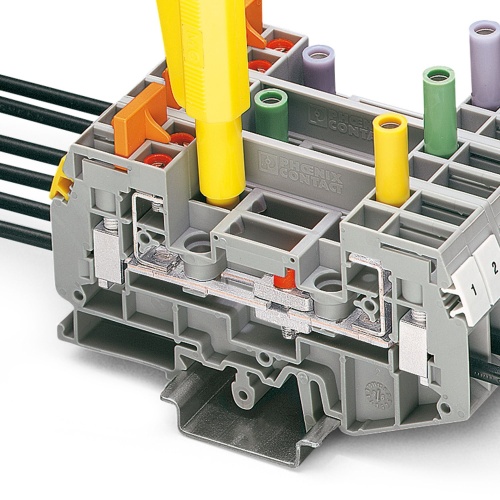

Can be fitted on both sides with fixed and switchable bridges as well as test sockets with 4 mm diameter
