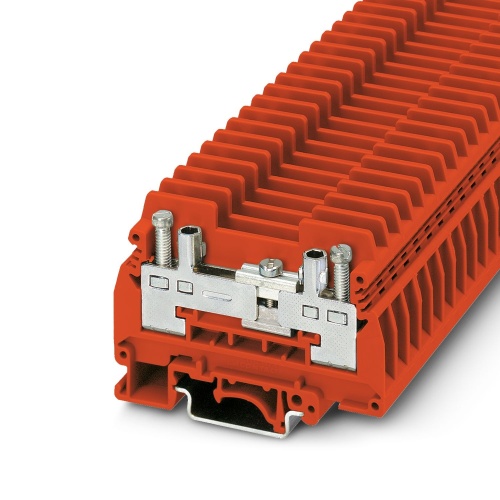

Phoenix Contact 0311812 Test disconnect terminal block URTK/S RD
Normally In Stock
Code: 641089
Phoenix Contact URTK/S RD Test disconnect terminal block - Red - 311812
Condition: New
Usually Ships Same day or Next Day$35.11
Sale Price
$29.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0311812 A test disconnect terminal block with a screw connection is required for testing, featuring a nominal voltage of 400 V and an associated current of 41 A. The connection method is two-level, while the rated cross-sectional area ranges between 0.5 mm2 to 10 mm2. Specifically, three mounting types (NS 35/7,5, NS 35/15, and NS 32) are available for this terminal block, distinguished by their color which is a distinctive red hue.
Specifications
Terminal Block Width
8.2 mm
Terminal Block Component Color
Red
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Test Disconnect Terminal Block
Features

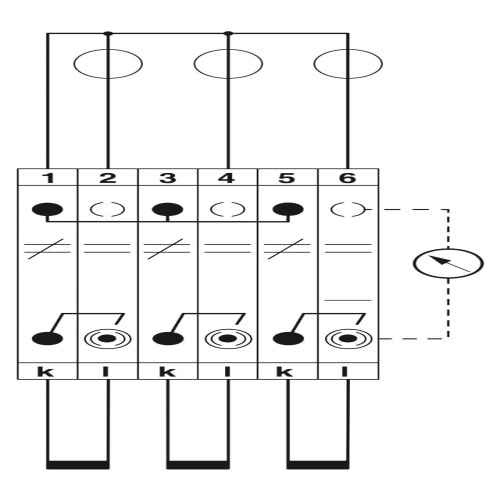

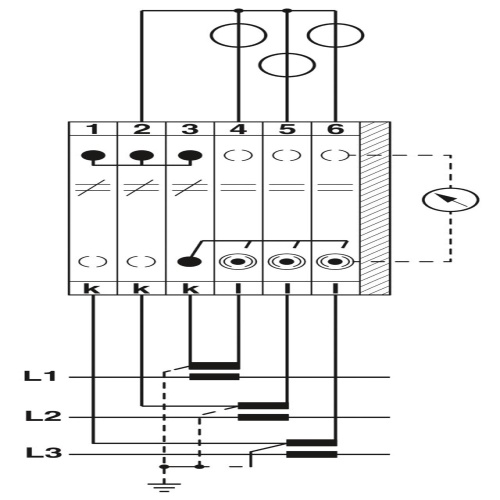

Easy and clear testing in current transformer secondary circuits can be performed using the test disconnect terminal blocks of the URTK/S range
On both sides of the disconnect point, the terminal block has a test socket which can also be used to switch across to neighboring terminal blocks
