Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

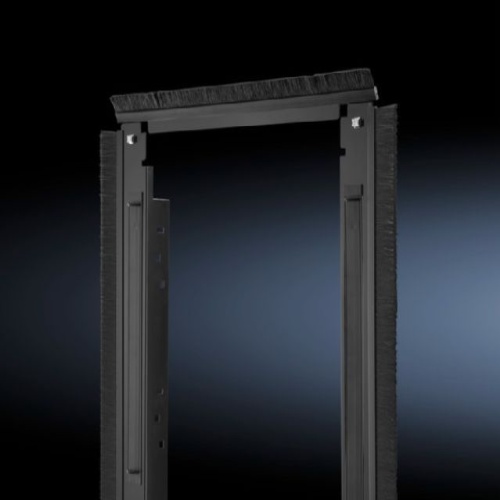

Rittal 5302016 Baffle - Carbon Steel, 23.6" x 78.7" (WxH)
Normally In Stock
Code: 640714
Rittal 5302016 - Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 600x2000 mm, RAL 9005
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
*NON-CANCELLABLE, NON-RETURNABLE*
$482.32
Sale Price
$401.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rittal 5302016 - Includes: 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 cellular PU foam pieces, Assembly components, mm,( Width: = 23.6",Height: = 78.7")
Specifications
Manufacturer
Rittal
Component
Baffle
Panel Composition
Carbon Steel
Panel Height
78.7"
Panel Width
23.6"
Features
Supply Includes: 2 vertical trim panels 2 horizontal trim panels 4 brush strips 4 cellular PU foam pieces Assembly parts
Benefits: To selectively boost the energy efficiency of your climate control system Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.

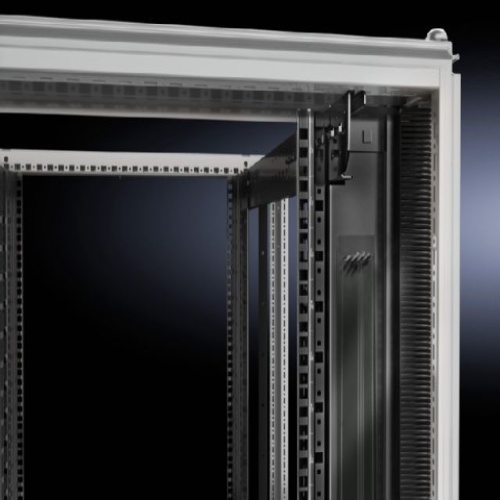

Assembly instructions: The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning. The horizontal trim panels with brush strips can only be mounted on the front 482.6 mm (19") mounting angles. 482.6 mm (19") mounting cut-outs integrated within the partitioning areas may optionally be sealed with the supplied blanking panels, or used to install additional components or for cable routing. Please see the product-specific scope of supply.
Application: To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
