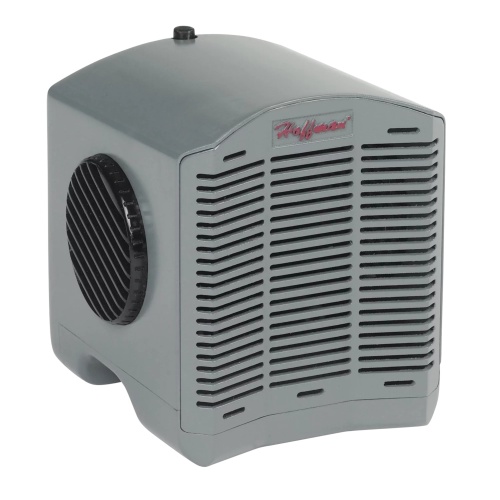

nVent Hoffman H2OMITTER H2Omit Thermoelectric Dehumidifier
Normally In Stock
Code: 6402
nVent Hoffman H2OMITTER H2Omit Thermoelectric Dehumidifier condenses moisture from internal enclosure air and standing liquids.
Condition: New
Usually ships Same Day or Next Day$1132.44
Sale Price
$943.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman H2OMITTER H2Omit Thermoelectric Dehumidifier The H2OMIT Thermoelectric Dehumidifier removes moisture from the air within an enclosure. An inexpensive yet highly effective way to protect electronic and electrical components from condensation.
Specifications
Component
Dehumidifier
(Pressure-Humidity Component) Composition
ABS
Manufacturer
Hoffman
Features
Mounts via DIN rail on internal panel or mounts directly onto the inside bottom of enclosure above the Vent Drain (sold separately)
Built-in drain provision with plastic hose directs collected moisture to the Vent Drain (sold separately)
Rotating side air vents direct recirculating air away from critical controls
Can be used in mild steel, aluminum, stainless steel and non-metallic enclosures
Condenses moisture from internal enclosure air and standing liquids
Reduces corrosion that can limit the life of internal electrical and electronic components
High-impact ABS shell
Removes 8 oz. of moisture in 24 hours
Runs continuously above 32 F (power supply not included) *
4.5 A max. (84 W)
Operates on 24-Volt DC power
Two mounting screws
Compact 6.00 x 5.50 x 5.75-inch design
One Thermoelectric Dehumidifier includes
Two hose retainers
One double-ended hose retainer
Six inches of Velcro®
Seven-inch strip of DIN rail
Four feet of plastic hose
Downloads
Hoffman H2OMITTER 2D DXF CAD.zipHoffman H2OMITTER 3D STEP CAD.zipHoffman H2OMITTER CAD Drawing.zipHoffman H2OMITTER Declaration of Compliance.pdfHoffman H2OMITTER EU Certification.pdfHoffman H2OMITTER H2Omit Thermoelectric Dehumidifier Instruction Manual.pdfHoffman H2OMITTER Spec Sheet.pdfHoffman H2OMITTER UL Certification.pdfHoffman H2OMITTER User Manual.pdf
