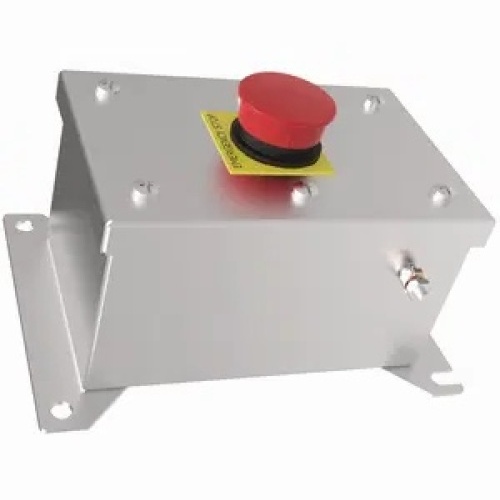

Killark HKH1BSP2M41EK8 - Control Station, 20 Amp, Red

Normally In Stock

Code: 637339

Killark HKH1BSP2M41EK8 - HKH Series Control Station, Maintained Contact Push Button E-Stop (Pull Release)- Panel Mount- 3/4" Hub - Stainless Steel 1b

Condition: New

Usually Ships Same Day or Next Day

$3369.68

Sale Price

$2808.07

Tariff Status

Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.

Need a large quantity or a custom solution?

Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

Add to Job Add to Favorites Add to Quote

Description

Killark HKH1BSP2M41EK8 - Size 1 Control Stations available as 1a, 1b, & 1c as standard catalog number offerings for 1, 2 & 3 device openings and will accept 2-M20 entries in either end. Ammeters available in 1b & 1c. Size 2 Enclosures available as 2a & 2c for 2, 4 & 6 device entries in cover with ability to accept 2-M25 entries in either end. Operating Temperature of -50ºC to +60ºC. Explosion Protected contact blocks 690 VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP. LED Pilot Light modules for 12-250V AC/ DC for UL applications. 12-254V AC/DC for IEC applications. Contacts & Pilot lights can be mounted inside enclosure on Din Rail or in cover to the actuator. Accessories available for Lockout/Tag Out functions made in 316 stainless steel. Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
