Code: 637329

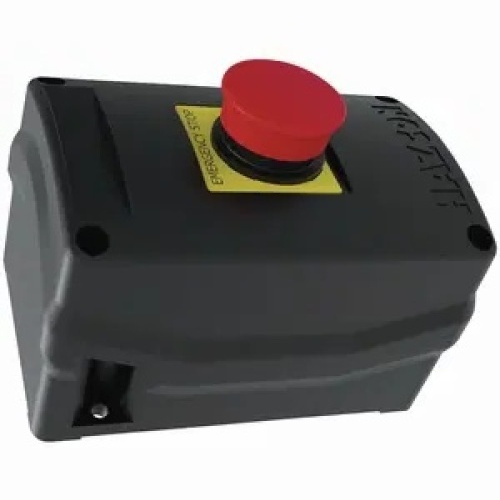

Killark HKH1BNDAM41E - Control Station, 20 Amp, Red
Normally In Stock
Killark HKH1BNDAM41E - HKH Series Control Station, Maintained Contact Push Button E-Stop (Pull Release)- Din Rail Mount- M20 - Non-Metallic 1b
Condition: New
Usually Ships Same Day or Next Day$1204.07
Sale Price
$1003.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Killark HKH1BNDAM41E - Size 1 Control Stations available as 1a, 1b, & 1c as standard catalog number offerings for 1, 2 & 3 device openings and will accept 2-M20 entries in either end. Ammeters available in 1b & 1c. Size 2 Enclosures available as 2a & 2c for 2, 4 & 6 device entries in cover with ability to accept 2-M25 entries in either end. Operating Temperature of -50ºC to +60ºC. Explosion Protected contact blocks 690 VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP. LED Pilot Light modules for 12-250V AC/ DC for UL applications. 12-254V AC/DC for IEC applications. Contacts & Pilot lights can be mounted inside enclosure on Din Rail or in cover to the actuator. Accessories available for Lockout/Tag Out functions made in 316 stainless steel. Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Operation
Maintained
(Switching-Indication) Composition
Plastic
(Switching-Indication) Color
Red
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) Amperage
20 Amp
Component
Control Station
Manufacturer
Killark
(Switching-Indication) Actuator Type
Pushbutton
Features
Size 1 Control Stations available as 1a, 1b, & 1c as standard catalog number offerings for 1, 2 & 3 device openings and will accept 2-M20 entries in either end.
Ammeters available in 1b & 1c.
Size 2 Enclosures available as 2a & 2c for 2, 4 & 6 device entries in cover with ability to accept 2-M25 entries in either end.
Operating Temperature of -50ºC to +60ºC.
Explosion Protected contact blocks 690 VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
LED Pilot Light modules for 12-250V AC/ DC for UL applications. 12-254V AC/DC for IEC applications.
Downloads
Code: 637329
Killark HKH1BNDAM41E - Control Station, 20 Amp, Red
$1204.07
Sale Price
$1003.39
