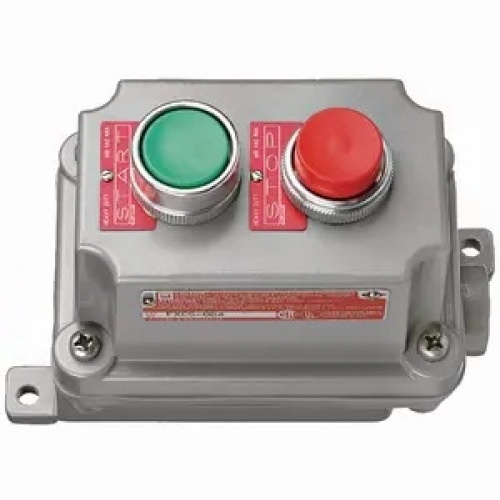

Killark FXCS-1B4-U - Control Station, 10 Amp, Green-Red
Normally In Stock
Code: 636819
Killark FXCS-1B4-U - FXCS-1B4-U - FXCS Series, AL Dead-End Momentary Contact Dbl Push Button Ctr Stn, Red/Green w/ "Start" Nameplates, Hub Size 1/2", 2NO/2NC Contact Rtg
Condition: New
Usually Ships Same Day or Next Day$1161.16
Sale Price
$967.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Killark FXCS-1B4-U - Eliminates external sealing requirements. Lower installation cost. NEMA 3 weatherproof. Color coded wiring with more wiring space for easier field installation. Stainless steel captive screws for cover assembly. Lockout accessory available must be factory installed. Ground boss for grounding in the splicebox. Device bodies and covers are copper-free cast aluminum alloy. Push button, selector switches and pilot light bodies are copper-free aluminum. Operating shaft in both push buttons and selector switches are stainless steel. Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) Operation
Momentary
(Switching-Indication) Amperage
10 Amp
Component
Control Station
Manufacturer
Killark
(Switching-Indication) Color
Green-Red
(Switching-Indication) Number of Poles
Two Pole
(Switching-Indication) Actuator Type
Pushbutton
Features
Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply
START/STOP Motor Functions, LED Pilot Light Indications and more
Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use
UL Listed and CSA Certified
