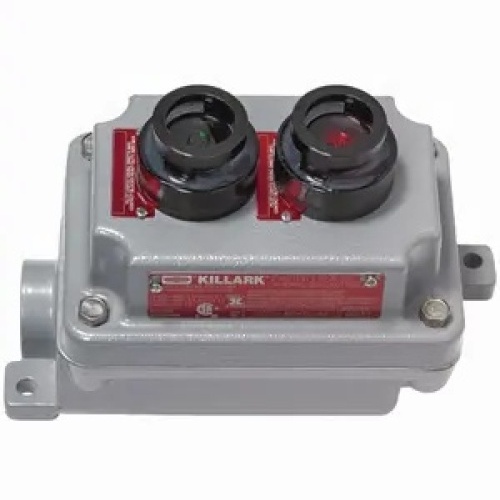

Killark FXCS-1B30RL-GL-MB - Control Station, .025 Amp, Red-Green
Normally In Stock
Code: 636816
Killark FXCS-1B30RL-GL-MB - FXCS-1B30RL-GL-MB - FXCS Series, Seal-XM, AL Dead-End Double 120V Pilot Lt Ctrl Stn, Red & Green Lens w/ Nameplates To Be Specified, Hub Size 1/2"
Condition: New
Usually Ships Same Day or Next Day$1094.89
Sale Price
$912.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Killark FXCS-1B30RL-GL-MB - Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot light devices. External sealing fittings typically not required, reducing installation time and cost. No seal plate between the electrical device and back box allows direct wiring to contact terminals. NEMA 3 weatherproof. Grounding boss supplied in the splice box. Sold as a complete unit. Standard finish is a gray epoxy powder baked on for ultimate corrosion resistance. More wiring room in back box. Killark SEAL-XM Factory Sealed Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. cCSAus Certified.
Specifications
(Switching-Indication) NEMA Rating
NEMA 3
Component
Control Station
Manufacturer
Killark
(Switching-Indication) Color
Red-Green
(Switching-Indication) Amperage
.025 Amp
Features
Eliminates external sealing requirements
Lower installation cost
NEMA 3 weatherproof
Color coded wiring
More wiring space for easier field installation
Stainless steel captive screws for cover assembly
Ground boss for grounding in the splice box
Cast conduit hubs 1/2”, 3/4” and 1” NPT either dead end or feed through standard in both single and two-gang assemblies
Pushbutton, selector switches and pilot light bodies are copper-free aluminum
Operating shaft in both pushbuttons and selector switches are stainless steel
Miniature and standard size pushbuttons. (miniature 3/4” overall diameter, standard 1 3/8” overall diameter)
