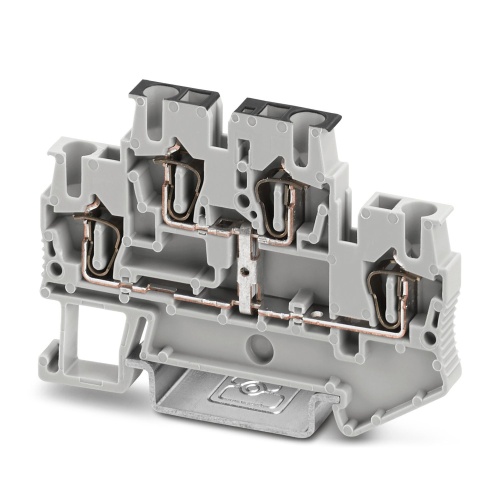

Phoenix Contact 3031539 Double-level terminal block STTB 2,5-PV
Normally In Stock
Code: 63601
STTB 2,5-PV Phoenix 3031539 Multi-level terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.46
Sale Price
$8.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

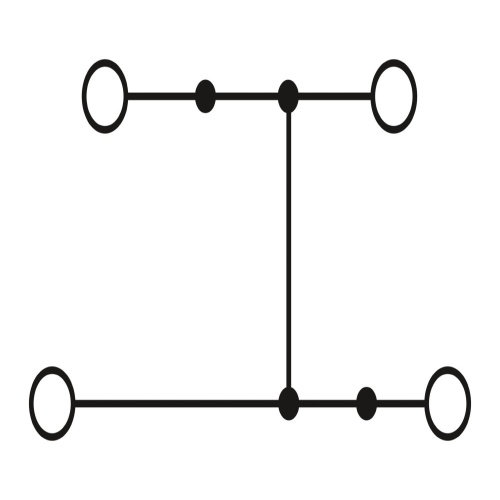

Phoenix Contact 3031539 A double-level terminal block features an equipotential bonder and is rated for a nominal voltage of 500V and a maximum current of 22A, with spring-cage connections on both levels. The terminal block has various cross-sectional ratings ranging from 0.08mm2 to 4mm2, and comes in two mounting types: NS35/7.5 and NS35/15. It also comes in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
Features
Compact design for maximum space savings
Tested for railway applications
Connect the levels using FBS ...-PV bridges
Downloads
Phoenix 3031539 CAD data International.dxfPhoenix 3031539 CAD data International.pdfPhoenix 3031539 CAD data International.stpPhoenix 3031539 Certification English-2.pdfPhoenix 3031539 Certification English.pdfPhoenix 3031539 Data Sheet English.pdfPhoenix 3031539 Manufacturers declaration International-2.pdfPhoenix 3031539 Manufacturers declaration International.pdfPhoenix 3031539 Safety note English.pdfPhoenix 3031539 Tender Text English.zipPhoenix 3031539 User instructions for the Ex Area International.pdf
