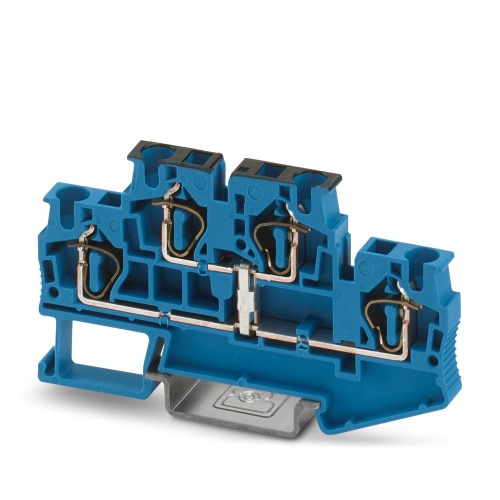

Phoenix Contact 3035593 Double-level terminal block STTB 4-PV BU
Normally In Stock
Code: 63599
STTB 4-PV BU Phoenix 3035593 Multi-level terminal block Spring-cage connection 500 V 30 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$11.80
Sale Price
$9.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

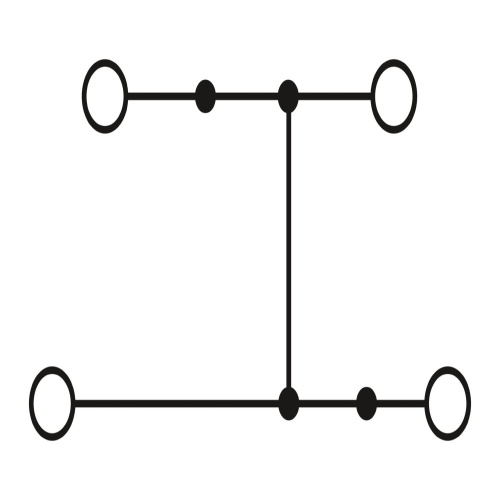

Phoenix Contact 3035593 A double-level terminal block with an equipotential bonder is rated for a nominal voltage of 500 V and a maximum nominal current of 30 A. The connection method uses spring-cage connections on both levels. The terminal block comes in various sizes, including NS 35/7,5 and NS 35/15, which have cross-sectional ratings ranging from 0.08 mm2 to 6 mm2. It is mounted using the NS 35/7,5 or NS 35/15 mounting type and has a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3035593 CAD data International.dxfPhoenix 3035593 CAD data International.pdfPhoenix 3035593 CAD data International.stpPhoenix 3035593 Certification English-2.pdfPhoenix 3035593 Manufacturers declaration International-2.pdfPhoenix 3035593 Manufacturers declaration International.pdfPhoenix 3035593 Safety note English.pdfPhoenix 3035593 Tender Text English.zipPhoenix 3035593 User instructions for the Ex Area International.pdf
